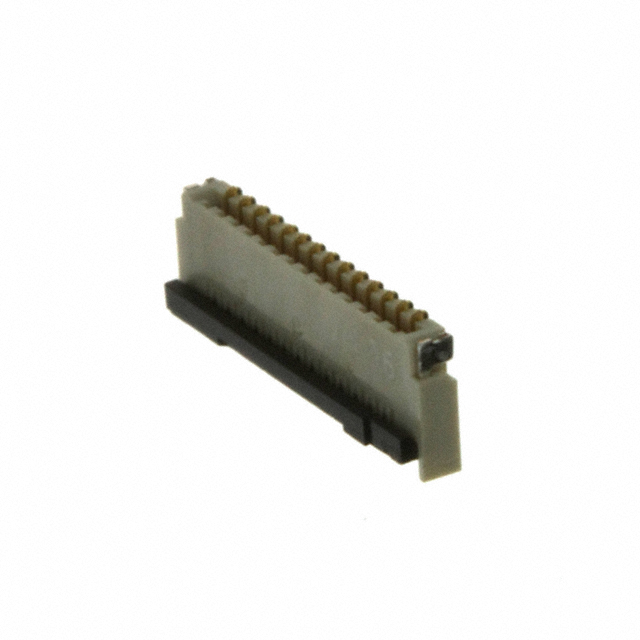

FH39-27S-0.3SHW(10)

FFC, FPC (Flat Flexible) Connectors

Manufacturer No:: FH39-27S-0.3SHW(10)
Manufacture:: Hirose Electric Co Ltd
Datasheet:: FH39-27S-0.3SHW(10)
Description:: CONN FPC 27POS 0.30MM R/A

In Stock

5138 pcs On sales

$2.02

Product Parameter

Mating Cycles: 10

Dielectric Material: Liquid Crystal Polymer (LCP)

Mounting Type: Surface Mount, Right Angle

Number of Positions: 27

Actuator Color: Black

Current Rating (Amps): 0.2A

Cable End Type: Tapered

Operating Temperature: -55°C ~ 85°C

Contact Finish: Gold

Connector/Contact Type: Contacts, Top and Bottom

Pitch: 0.012" (0.30mm)

Flat Flex Type: FPC

Contact Finish Thickness: 19.7µin (0.50µm)

Series: FH39

Voltage Rating: 30V

Material Flammability Rating: UL94 V-0

Features: Zero Insertion Force (ZIF)

Locking Feature: Flip Lock, Backlock

Packaging: Cut Tape (CT)

Contact Material: Phosphor Bronze

Part Status: Active

Actuator Material: Polyamide (PA), Nylon

Termination: Solder

FFC, FCB Thickness: 0.20mm

Housing Color: Beige

Height Above Board: 0.044" (1.12mm)
