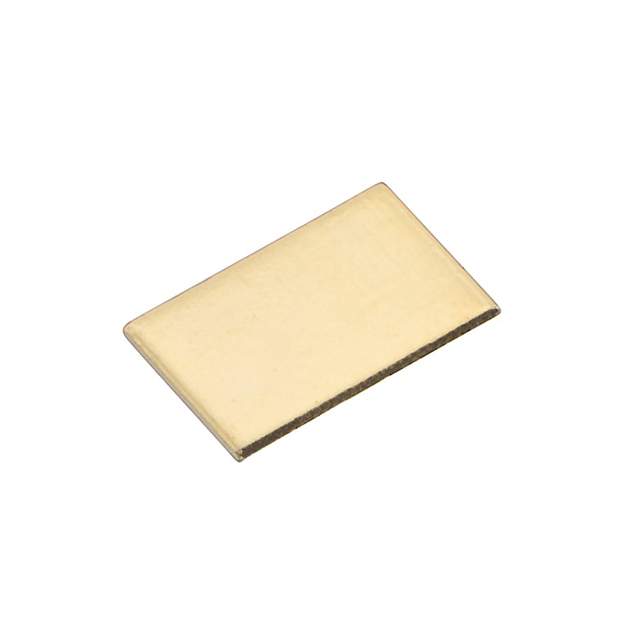

S70-138305045R
Contacts, Spring Loaded and Pressure
- Manufacturer No:
- S70-138305045R
- Manufacture:
- Harwin Inc.
- Datasheet:
- S70-138305045R
- Description:
- CONTACT SMD GOLD
In Stock
10729 pcs On sales
$0
Product Parameter
- Contact Material
- Beryllium Copper
- Pad Layout Dimension
- Rectangular - 0.150" L x 0.118" W x 0.020" H (3.80mm x 3.00mm x 0.50mm)
- Current Rating (Amps)
- 6A
- Series
- -
- Operating Temperature
- -40°C ~ 180°C
- Features
- -
- Maximum Working Height
- -
- Packaging
- Digi-Reel®
- Minimum Working Height
- -
- Part Status
- Active
- Contact Finish Thickness
- Flash
- Contact Type
- Contact Pad
- Operating Force - Initial
- -
- Plunger Size
- -
- Recommended Working Height
- -
- Mating Cycles
- -
- Material Flammability Rating
- -
- Mounting Type
- Surface Mount
- Operating Force - Mid Compression
- -
- Contact Finish
- Gold
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
S70-138305045R Relevant information

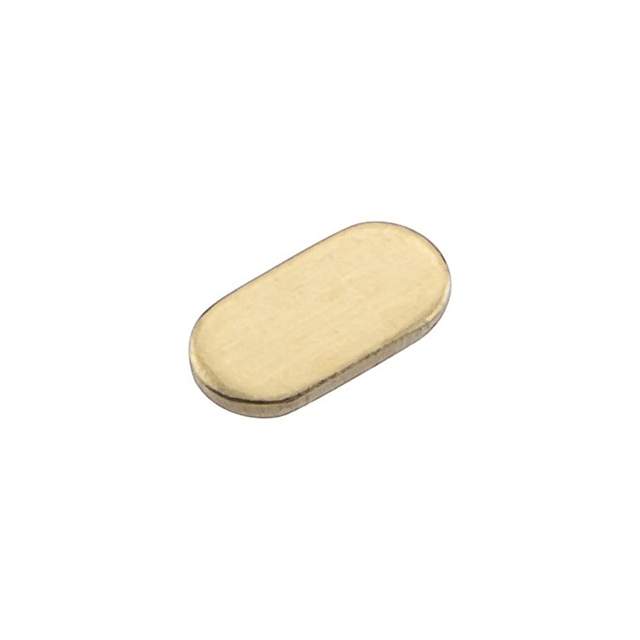

S70-125161545R
