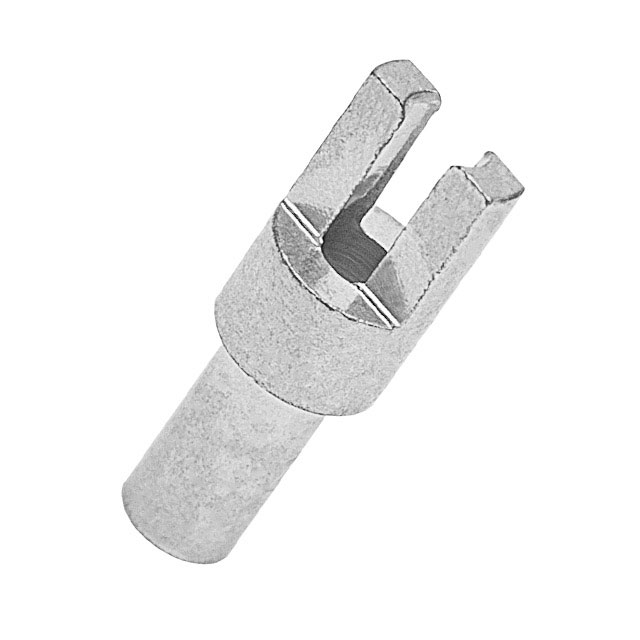

H9036-01
Terminals - Turret Connectors
- Manufacturer No:
- H9036-01
- Manufacture:
- Harwin Inc.
- Datasheet:
- H9036-01
- Description:
- TERM TURRET HOLLOW L=3.96MM TIN
In Stock
0 pcs On sales
$0
Product Parameter
- Board Thickness
- 0.063" (1.60mm)
- Mounting Hole Diameter
- 0.064" ~ 0.068" (1.63mm ~ 1.72mm)
- Flange Diameter
- 0.094" (2.39mm)
- Contact Finish Thickness
- -
- Staking Side ID
- -
- Staking Side OD
- 0.061" ~ 0.064" (1.55mm ~ 1.63mm)
- Contact Material
- Brass Alloy
- Series
- -
- Insulation Color
- -
- Insulation
- Non-Insulated
- Length - Overall
- 0.250" (6.35mm)
- Part Status
- Obsolete
- Number of Turrets
- Single
- Termination
- Swage
- Length - Above Board
- 0.156" (3.96mm)
- Mounting Type
- Through Hole
- Length - Below Flange
- 0.094" ~ 0.099" (2.39mm ~ 2.51mm)
- Terminal Type
- Single End, Fork, Hollow
- Material - Insulation
- -
- Contact Finish
- Tin
- Diameter - Turret Head
- -
