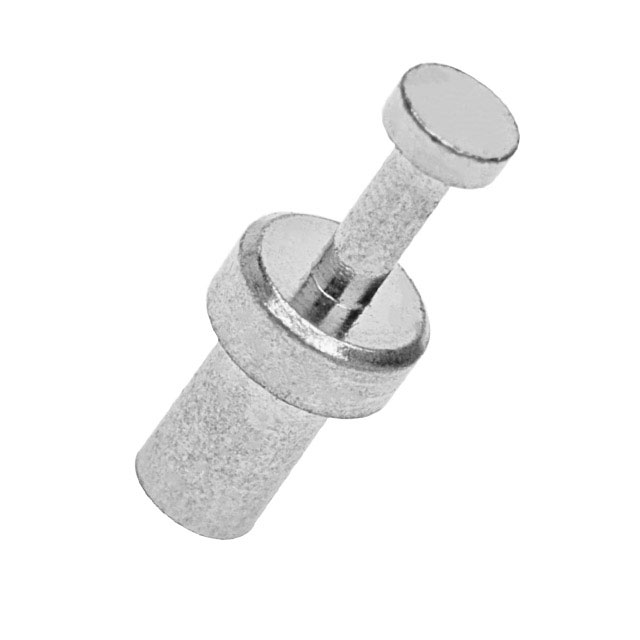

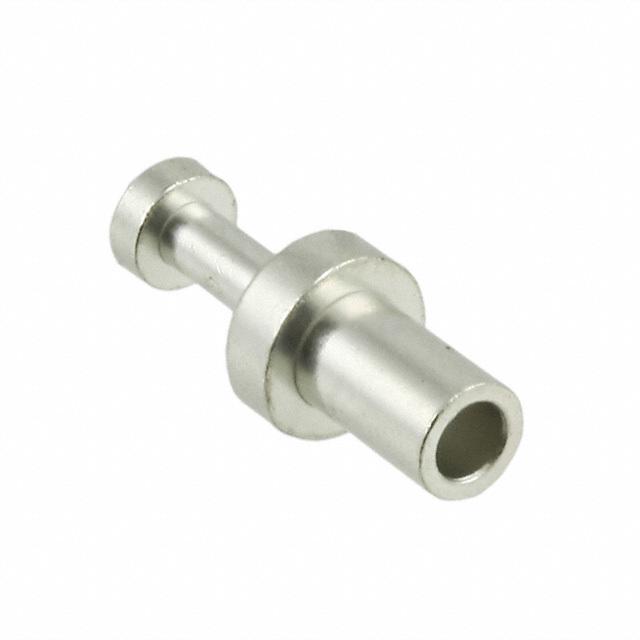

H9001-01
Terminals - Turret Connectors
- Manufacturer No:
- H9001-01
- Manufacture:
- Harwin Inc.
- Datasheet:
- H9001-01
- Description:
- TERM TURRET SINGLE L=2.39MM TIN
In Stock
2990 pcs On sales
$0.29
Product Parameter
- Terminal Type
- Single End
- Material - Insulation
- -
- Contact Finish
- Tin
- Diameter - Turret Head
- 0.040" (1.02mm)
- Board Thickness
- 0.063" (1.60mm)
- Mounting Hole Diameter
- 0.049" ~ 0.052" (1.24mm ~ 1.32mm)
- Flange Diameter
- 0.062" (1.57mm)
- Contact Finish Thickness
- -
- Staking Side ID
- 0.028" (0.71mm)
- Staking Side OD
- -
- Contact Material
- Brass Alloy
- Series
- -
- Insulation Color
- -
- Insulation
- Non-Insulated
- Length - Overall
- 0.176" (4.47mm)
- Part Status
- Active
- Number of Turrets
- Single
- Termination
- Swage
- Length - Above Board
- 0.094" (2.39mm)
- Mounting Type
- Through Hole
- Length - Below Flange
- 0.082" ~ 0.084" (2.08mm ~ 2.13mm)
