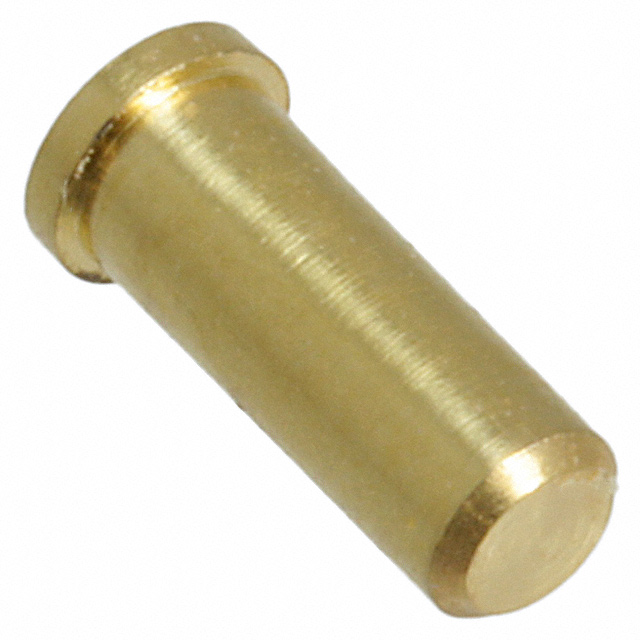

H3184-01
Terminals - PC Pin Receptacles, Socket Connectors
- Manufacturer No:
- H3184-01
- Manufacture:
- Harwin Inc.
- Datasheet:
- H3184-01
- Description:
- CONN PIN RCPT .035-.041 PRESSFIT
In Stock
941 pcs On sales
$0.47
Product Parameter
- Series
- -
- Contact Material
- Beryllium Copper
- Features
- -
- Length - Overall
- 0.236" (6.00mm)
- Packaging
- Bulk
- Pin Hole Diameter
- -
- Tail Type
- No Tail
- Accepts Pin Diameter
- 0.035" ~ 0.041" (0.89mm ~ 1.05mm)
- Part Status
- Active
- Operating Temperature
- -55°C ~ 125°C
- Termination
- Press-Fit
- Mounting Hole Diameter
- 0.086" ~ 0.088" (2.18mm ~ 2.24mm)
- Socket Depth
- -
- Accepts Square Pin Size
- -
- Tail Diameter
- -
- Contact Finish Thickness
- 5.90µin (0.150µm)
- Contact Finish
- Gold
- Board Thickness
- -
- Flange Diameter
- 0.125" (3.18mm)
- Insertion Force
- 3.00N ~ 9.00N
