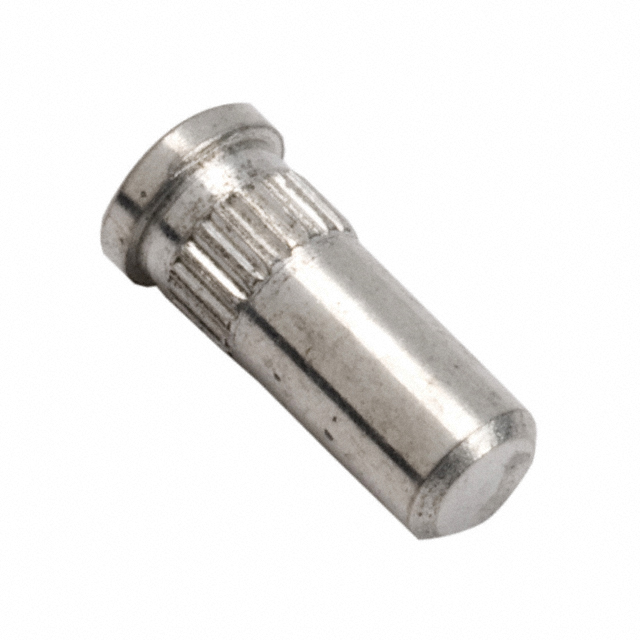

H3161-05
Terminals - PC Pin Receptacles, Socket Connectors
- Manufacturer No:
- H3161-05
- Manufacture:
- Harwin Inc.
- Datasheet:
- H3161-05
- Description:
- CONN PIN RCPT .035-.041 KNURL
In Stock
8790 pcs On sales
$0.4
Product Parameter
- Socket Depth
- 0.140" (3.56mm)
- Accepts Square Pin Size
- -
- Tail Diameter
- -
- Contact Finish Thickness
- 5.90µin (0.150µm)
- Contact Finish
- Gold
- Board Thickness
- -
- Flange Diameter
- 0.092" (2.34mm)
- Insertion Force
- 3.00N ~ 9.00N
- Series
- -
- Contact Material
- Beryllium Copper
- Features
- -
- Length - Overall
- 0.207" (5.26mm)
- Packaging
- Bulk
- Pin Hole Diameter
- -
- Tail Type
- No Tail
- Accepts Pin Diameter
- 0.035" ~ 0.041" (0.89mm ~ 1.05mm)
- Part Status
- Active
- Operating Temperature
- -55°C ~ 125°C
- Termination
- Press-Fit, Knurled
- Mounting Hole Diameter
- 0.075" ~ 0.077" (1.91mm ~ 1.96mm)
