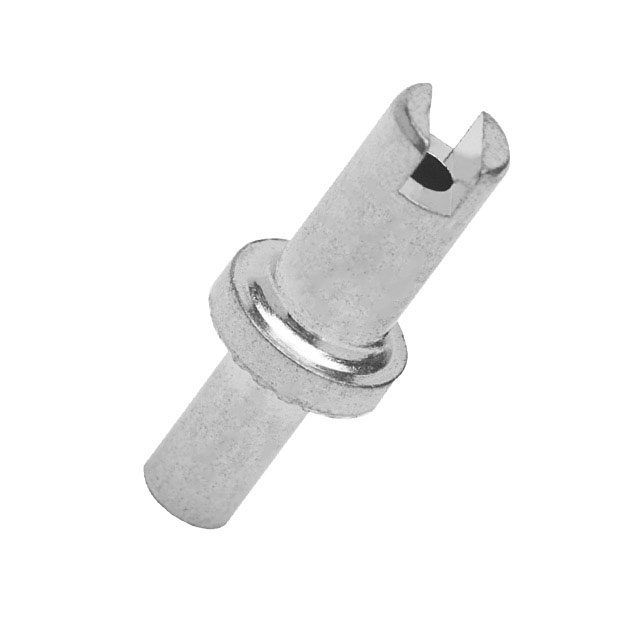

H3073-01
Terminals - Turret Connectors
- Manufacturer No:
- H3073-01
- Manufacture:
- Harwin Inc.
- Datasheet:
- H3073-01
- Description:
- TERM TURRET HOLLOW L=8.74-9.23MM
In Stock
0 pcs On sales
$0
Product Parameter
- Board Thickness
- 0.063" (1.60mm)
- Mounting Hole Diameter
- 0.105" ~ 0.109" (2.67mm ~ 2.77mm)
- Flange Diameter
- 0.184" ~ 0.190" (4.67mm ~ 4.83mm)
- Contact Finish Thickness
- -
- Staking Side ID
- -
- Staking Side OD
- 0.102" ~ 0.105" (2.59mm ~ 2.67mm)
- Contact Material
- Brass Alloy
- Series
- -
- Insulation Color
- -
- Insulation
- Non-Insulated
- Length - Overall
- 0.443" ~ 0.463" (11.25mm ~ 11.75mm)
- Part Status
- Obsolete
- Number of Turrets
- Single
- Termination
- Swage
- Length - Above Board
- 0.344" ~ 0.363" (8.74mm ~ 9.23mm)
- Mounting Type
- Through Hole
- Length - Below Flange
- 0.094" ~ 0.099" (2.39mm ~ 2.51mm)
- Terminal Type
- Single End, Fork, Hollow
- Material - Insulation
- -
- Contact Finish
- Tin
- Diameter - Turret Head
- -
