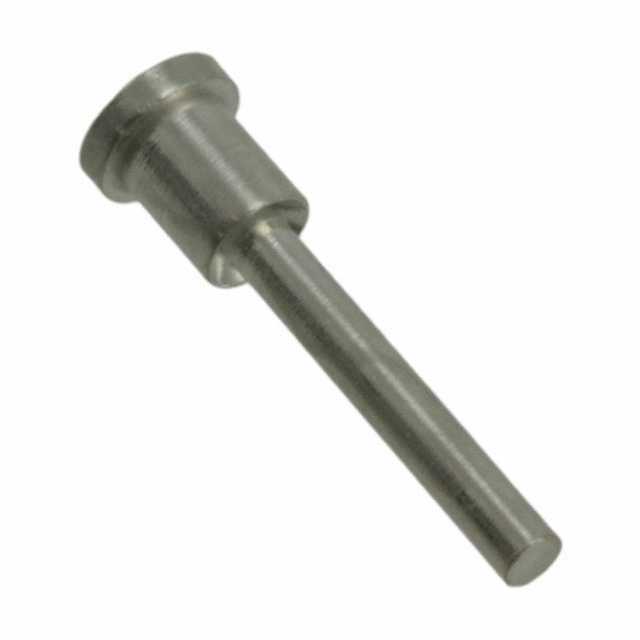

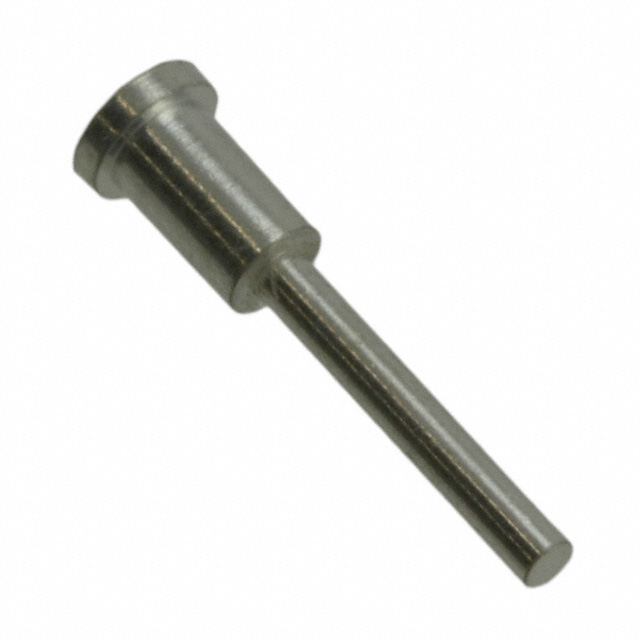

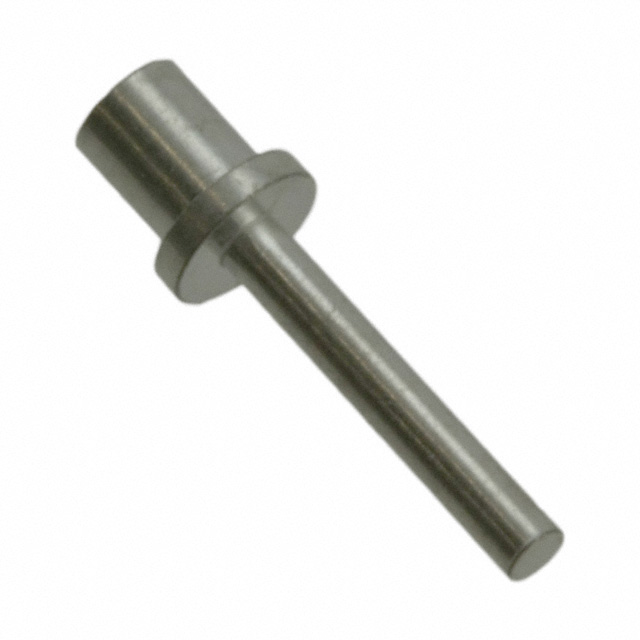

H2101-01
Terminals - PC Pin, Single Post Connectors
- Manufacturer No:
- H2101-01
- Manufacture:
- Harwin Inc.
- Datasheet:
- H2101-01
- Description:
- CONN PC PIN CIRC 0.036DIA TIN
In Stock
1546 pcs On sales
$0.41
Product Parameter
- Insulation
- Non-Insulated
- Length - Above Flange
- 0.219" (5.56mm)
- Part Status
- Active
- Length - Below Flange
- 0.324" (8.23mm)
- Termination
- Swage
- Material - Insulation
- -
- Mounting Type
- Through Hole
- Mounting Hole Diameter
- 0.070" ~ 0.074" (1.78mm ~ 1.87mm)
- Terminal Type
- PC Pin
- Pin Size - Above Flange
- 0.036" (0.91mm) Dia
- Contact Finish
- Tin
- Pin Size - Below Flange
- -
- Terminal Style
- Double End
- Contact Finish Thickness
- -
- Board Thickness
- 0.063" (1.60mm)
- Flange Diameter
- 0.094" (2.39mm)
- Contact Material
- Brass
- Series
- -
- Insulation Color
- -
- Packaging
- Bulk
- Length - Overall
- 0.563" (14.30mm)
