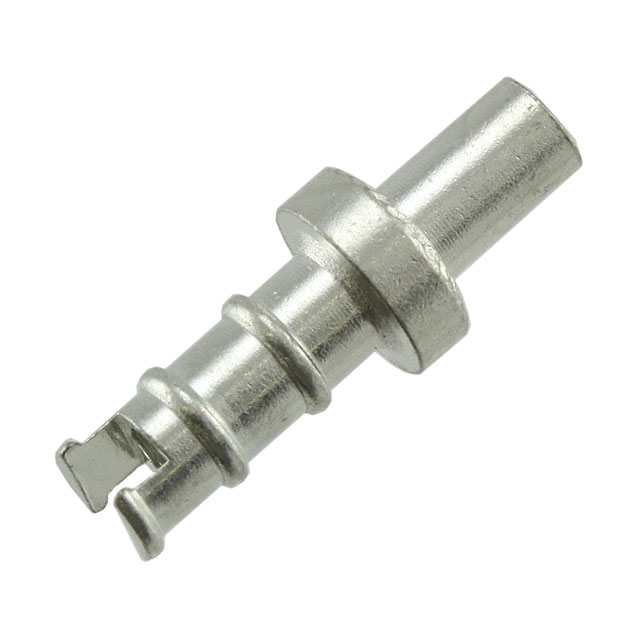

H2072ZL1
Terminals - Turret Connectors
- Manufacturer No:
- H2072ZL1
- Manufacture:
- Harwin Inc.
- Datasheet:
- H2072ZL1
- Description:
- TERM TURRET SLOTTED L=6.52MM TIN
In Stock
1289 pcs On sales
$0.58
Product Parameter
- Flange Diameter
- 0.156" (3.96mm)
- Contact Finish Thickness
- -
- Staking Side ID
- 0.046" ~ 0.048" (1.17mm ~ 1.22mm)
- Staking Side OD
- 0.074" ~ 0.079" (1.87mm ~ 2.01mm)
- Contact Material
- Brass Alloy
- Series
- -
- Insulation Color
- -
- Insulation
- Non-Insulated
- Length - Overall
- 0.382" (9.70mm)
- Part Status
- Active
- Number of Turrets
- Triple
- Termination
- Swage
- Length - Above Board
- 0.257" (6.52mm)
- Mounting Type
- Through Hole
- Length - Below Flange
- 0.125" (3.18mm)
- Terminal Type
- Single End, Fork
- Material - Insulation
- -
- Contact Finish
- Tin
- Diameter - Turret Head
- 0.100" (2.54mm)
- Board Thickness
- 0.094" (2.39mm)
- Mounting Hole Diameter
- 0.079" ~ 0.083" (2.01mm ~ 2.11mm)
