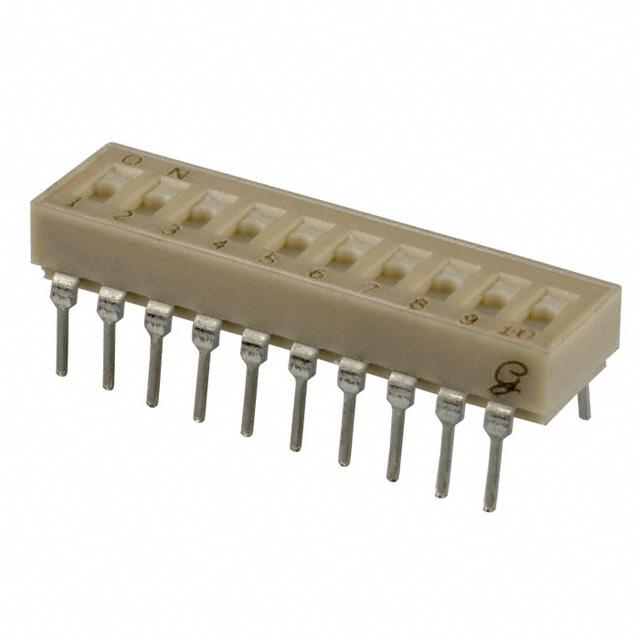

90B10S
DIP Switches
- Manufacturer No:
- 90B10S
- Manufacture:
- Grayhill, Inc.
- Datasheet:
- 90B10S
- Description:
- SWITCH SLIDE DIP SPST 25MA 24V
In Stock
0 pcs On sales
$0
Product Parameter
- Part Status
- Obsolete
- Number of Positions
- 10
- Actuator Type
- Slide (Standard)
- Current Rating (Amps)
- 25mA
- Body Material
- Thermoplastic
- Operating Temperature
- -40°C ~ 85°C
- Mounting Type
- Through Hole
- Actuator Level
- Flush, Recessed
- Pitch
- 0.100" (2.54mm), Full
- Contact Finish
- Gold
- Length
- 1.070" (27.18mm)
- Voltage Rating
- 24VDC
- Series
- 90B
- Electrical Life
- 2,000 Cycles
- Circuit
- SPST
- Mechanical Life
- 2,000 Cycles
- Features
- Tape Seal
- Contact Material
- Copper Alloy
- Washable
- Yes
- Termination Style
- PC Pin
- Packaging
- Tube
- Height Above Board
- 0.195" (4.95mm)
