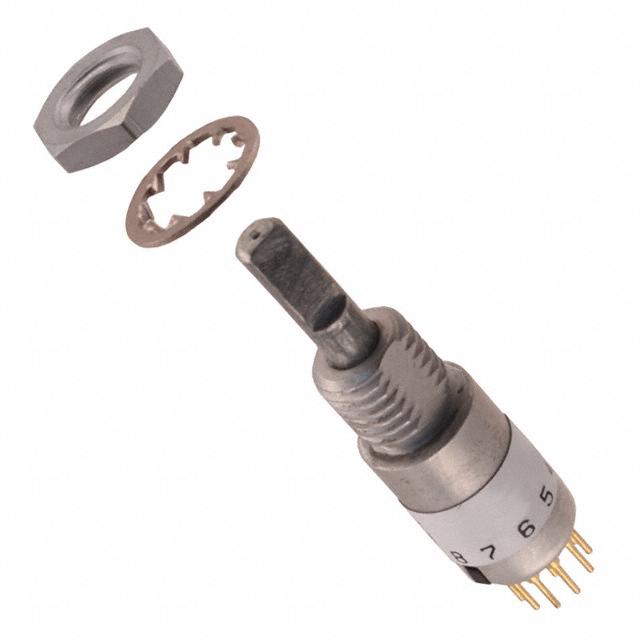

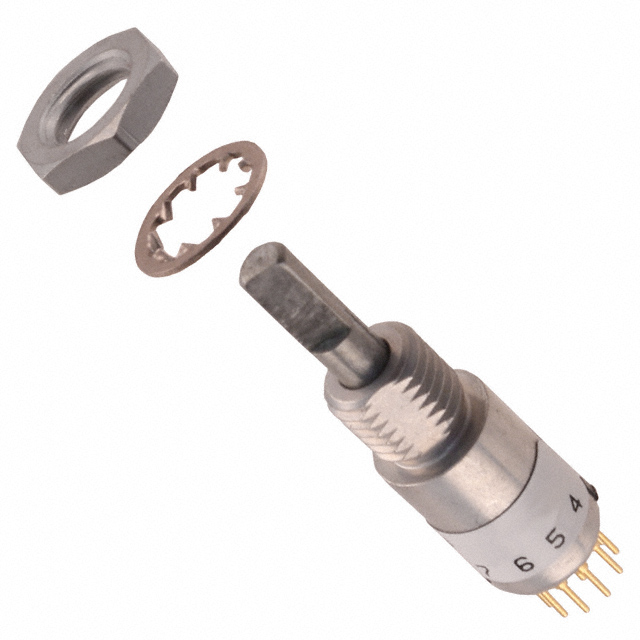

75BP36-01-1-04N
Rotary Switches
- Manufacturer No:
- 75BP36-01-1-04N
- Manufacture:
- Grayhill, Inc.
- Datasheet:
- 75BP36-01-1-04N
- Description:
- SWITCH ROTARY 4POS 200MA 115V
In Stock
100 pcs On sales
$25.12
Product Parameter
- Contact Finish
- Gold
- Current Rating (Amps)
- 200mA (AC/DC)
- Contact Timing
- Non-Shorting (BBM)
- Panel Cutout Dimensions
- -
- Actuator Length
- 9.53mm
- Number of Poles per Deck
- 1
- Number of Decks
- 1
- Operating Force
- -
- Series
- 75
- Circuit per Deck
- SP4T
- Features
- -
- Contact Material
- Silver Cadmium Oxide (AgCdO)
- Index Stops
- Fixed
- Termination Style
- PC Pin
- Part Status
- Active
- Depth Behind Panel
- 12.70mm
- Actuator Type
- Flatted (3.17mm Dia)
- Number of Positions
- 4
- Mounting Type
- Panel Mount, Through Hole
- Voltage Rating - AC
- 115V
- Angle of Throw
- 36°
- Voltage Rating - DC
- 30V
