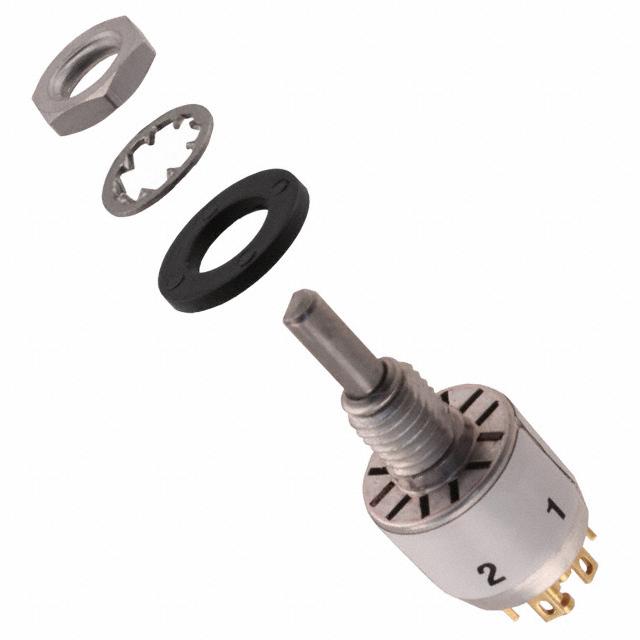

50D60-01-1-AJN
Rotary Switches
- Manufacturer No:
- 50D60-01-1-AJN
- Manufacture:
- Grayhill, Inc.
- Datasheet:
- 50D60-01-1-AJN
- Description:
- SWITCH ROTARY 2-6POS 150MA 115V
In Stock
52 pcs On sales
$18.9
Product Parameter
- Features
- -
- Contact Material
- -
- Index Stops
- Adjustable
- Termination Style
- Solder Lug
- Part Status
- Active
- Depth Behind Panel
- 18.77mm
- Actuator Type
- Flatted (3.17mm Dia)
- Number of Positions
- 2 ~ 6
- Mounting Type
- Panel Mount
- Voltage Rating - AC
- 115V
- Angle of Throw
- 60°
- Voltage Rating - DC
- 28V
- Contact Finish
- Gold
- Current Rating (Amps)
- 150mA (AC), 200mA (DC)
- Contact Timing
- Non-Shorting (BBM)
- Panel Cutout Dimensions
- Circular - 6.45mm Dia
- Actuator Length
- 9.53mm
- Number of Poles per Deck
- 1
- Number of Decks
- 1
- Operating Force
- 5.761 ~ 17gfm
- Series
- 50
- Circuit per Deck
- SP6T
