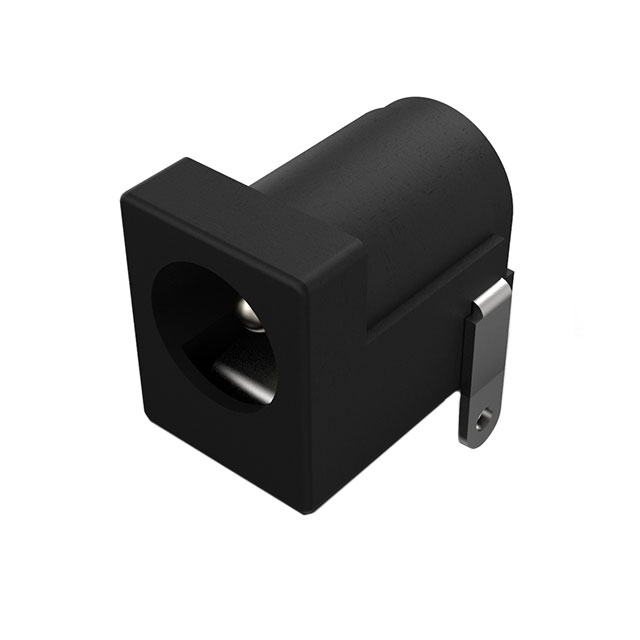

DCJ200-05-A-K1-A
Barrel - Power Connectors
- Manufacturer No:
- DCJ200-05-A-K1-A
- Manufacture:
- GCT
- Datasheet:
- DCJ200-05-A-K1-A
- Description:
- DC POWER JACK, SMT, HORIZONTAL,
In Stock
470 pcs On sales
$0
Product Parameter
- Packaging
- Digi-Reel®
- Insulation Color
- -
- Shielding
- Unshielded
- Mounting Feature
- -
- Body Color
- Black
- Ingress Protection
- -
- Part Status
- Active
- Internal Switch(s)
- Single Switch, Normally Closed
- Termination
- Solder
- Dielectric Material
- Polyamide (PA9T), Nylon 9T
- Thread Size
- -
- Mating Length/Depth
- -
- Body Material
- -
- Current Rating (Amps)
- 5A
- Mounting Type
- Surface Mount, Right Angle
- Operating Temperature
- -20°C ~ 70°C
- Gender
- Male
- Connector Type
- Jack
- Contact Material - Plating
- Silver
- Series
- DCJ200-05
- Actual Diameter
- 0.079" (2.00mm ID), 0.252" (6.40mm OD)
- Material Flammability Rating
- UL94 V-0
- Features
- Board Guide, Solder Retention
- Voltage - Rated
- 20VDC
- Number of Positions/Contacts
- 2 Conductors, 3 Contacts
- Includes
- -
- Contact Material
- Brass, Phosphor Bronze
- Industry Recognized Mating Diameter
- 2.05mm ID (0.081"), 5.50mm OD (0.217")
