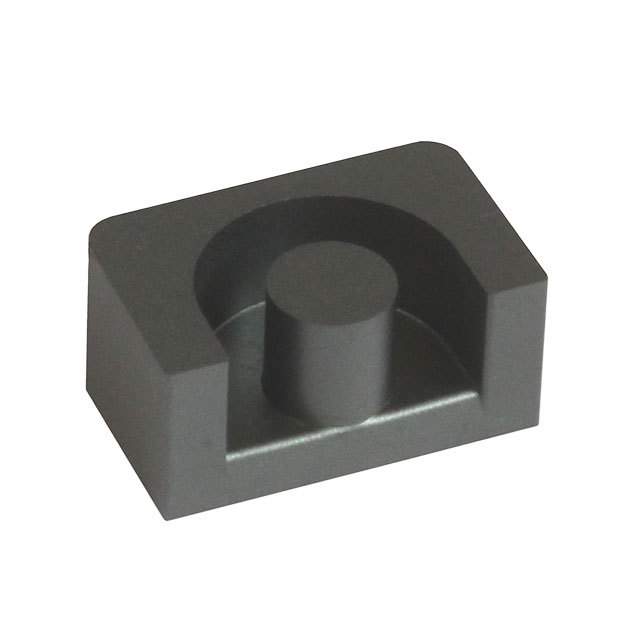

EP20-3C90
Ferrite Cores
- Manufacturer No:
- EP20-3C90
- Manufacture:
- FERROXCUBE
- Datasheet:
- EP20-3C90
- Description:
- EP AND EPX CORES 2PC SET
In Stock
103 pcs On sales
$2.1
Product Parameter
- Diameter
- -
- Minimum Core Cross Section (Amin) mm²
- 60.8
- Material
- 3C90
- Core Type
- EP
- Tolerance
- ±25%
- Part Status
- Active
- Core Factor (ΣI/A) mm
- 0.52
- Gap
- Ungapped
- Inductance Factor (Al)
- 4.435µH
- Width
- 15.00mm
- Supplier Device Package
- EP 20
- Finish
- Uncoated
- Effective Area (Ae) mm²
- 78.7
- Height
- 21.40mm
- Effective Length (le) mm
- 41.1
- Length
- 24.00mm
- Effective Permeability (µe)
- 1840
- Series
- -
- Effective Magnetic Volume (Ve) mm³
- 3230
