19-337/R6GHBHC-A01/2T
LED Indication - Discrete
- Manufacturer No:
- 19-337/R6GHBHC-A01/2T
- Manufacture:
- Everlight Electronics Co Ltd
- Package:
- 2-SMD, No Lead
- Datasheet:
- 19-337/R6GHBHC-A01/2T
- Description:
- LED RGB CLEAR SMD
In Stock
4000 pcs On sales
$0.1
Product Parameter
- Lens Color
- Colorless
- Millicandela Rating
- 100mcd Red, 180mcd Green, 50mcd Blue
- Lens Style
- Rectangle with Flat Top
- Wavelength - Dominant
- 624nm Red, 525nm Green, 470nm Blue
- Part Status
- Active
- Supplier Device Package
- SMD
- Height (Max)
- 0.35mm
- Voltage - Forward (Vf) (Typ)
- 2.05V Red, 3.25V Green, 3.25V Blue
- Configuration
- Independent
- Mounting Type
- Surface Mount
- Viewing Angle
- 120°
- Color
- Red, Green, Blue (RGB)
- Current - Test
- 20mA Red, 20mA Green, 20mA Blue
- Series
- -
- Package / Case
- 2-SMD, No Lead
- Features
- -
- Size / Dimension
- 1.60mm L x 1.60mm W
- Lens Size
- 1.00mm x 1.60mm
- Lens Transparency
- Clear
- Packaging
- Tape & Reel (TR)
- Wavelength - Peak
- 632nm Red, 518nm Green, 468nm Blue
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
19-337/R6GHBHC-A01/2T Relevant information
19-337/R6GHBHC-A01/2T
LED RGB CLEAR SMD
19-337/S2GHBHC-A01/2T
LED BLUE/GREEN/ORG CLR CHIP SMD
19-337C/RSBHGHC-A01/2T
LED RGB CLEAR 6SMD

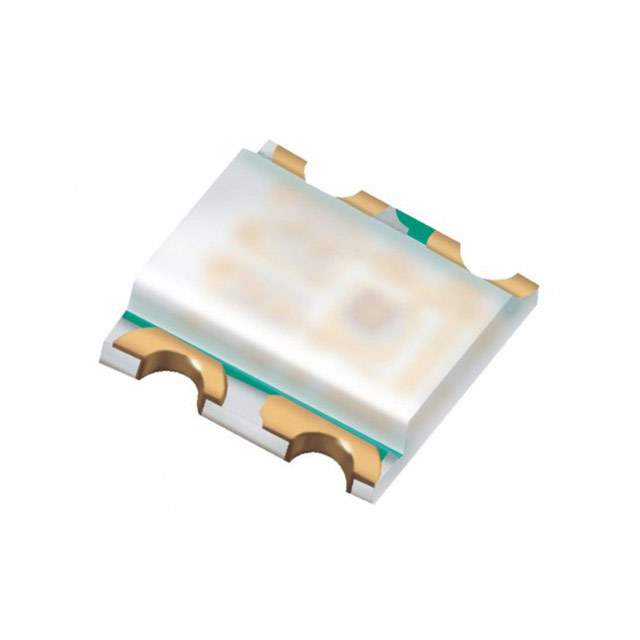

19-337C/RSBHGHC-A88/4T
