RJH-50V101MH4#
Aluminum Electrolytic Capacitors
- Manufacturer No:
- RJH-50V101MH4#
- Manufacture:
- Elna America
- Package:
- Radial, Can
- Datasheet:
- RJH-50V101MH4#
- Description:
- CAP ALUM 100UF 20% 50V T/H
In Stock
2205 pcs On sales
$0.64
Product Parameter
- Part Status
- Active
- Ripple Current @ Low Frequency
- 387.1mA @ 120Hz
- Applications
- General Purpose
- Ripple Current @ High Frequency
- 553mA @ 100kHz
- Lead Spacing
- 0.197" (5.00mm)
- ESR (Equivalent Series Resistance)
- 1.66Ohm @ 120Hz
- Polarization
- Polar
- Mounting Type
- Through Hole
- Package / Case
- Radial, Can
- Voltage - Rated
- 50V
- Lifetime @ Temp.
- 3000 Hrs @ 105°C
- Series
- RJH
- Size / Dimension
- 0.394" Dia (10.00mm)
- Ratings
- -
- Height - Seated (Max)
- 0.709" (18.00mm)
- Tolerance
- ±20%
- Operating Temperature
- -55°C ~ 105°C
- Capacitance
- 100µF
- Surface Mount Land Size
- -
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
RJH-50V101MH4# Relevant information
RJH-4L-B

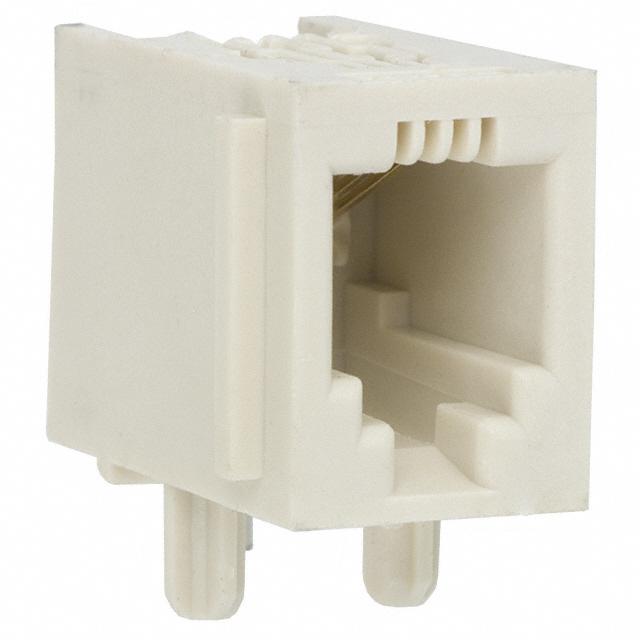

CONN MOD JACK 4P4C R/A UNSHLD
