W4S200-CH04-70
AC Fans
- Manufacturer No:
- W4S200-CH04-70
- Manufacture:
- ebm-papst Inc.
- Datasheet:
- W4S200-CH04-70
- Description:

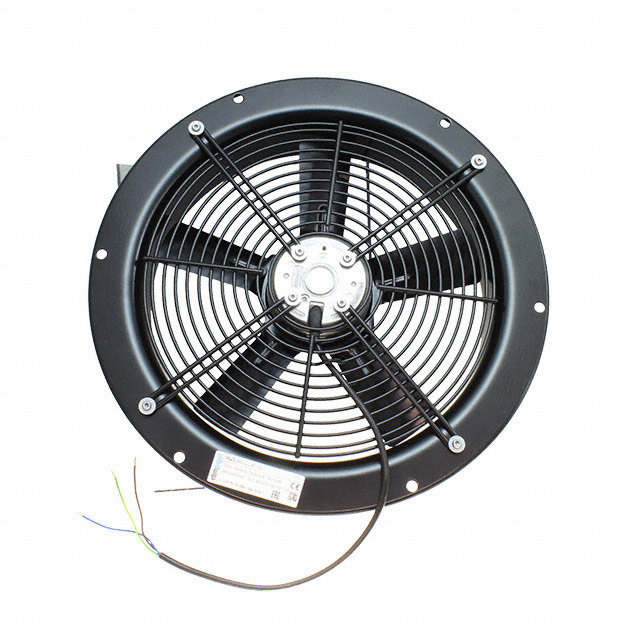

- FAN AXIAL 280X80MM 230VAC WIRE
In Stock
0 pcs On sales
$206.94
Product Parameter
- Noise
- 46.0 dB(A)
- Voltage Range
- -
- Width
- 80.00mm
- Static Pressure
- -
- Series
- W2E200A
- Voltage - Rated
- 230VAC
- Weight
- 2.7 lbs (1.2 kg)
- Lifetime @ Temp.
- -
- Air Flow
- 315.0 CFM (8.82m³/min)
- Material - Blade
- Steel
- Fan Type
- Tubeaxial
- Material - Frame
- -
- Features
- -
- Size / Dimension
- Round - 280mm Dia
- Approvals
- CSA, UL, VDE
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- -
- Termination
- 2 Wire Leads
- Operating Temperature
- -
- Bearing Type
- Ball
- RPM
- -
- Power (Watts)
- 27.00W
