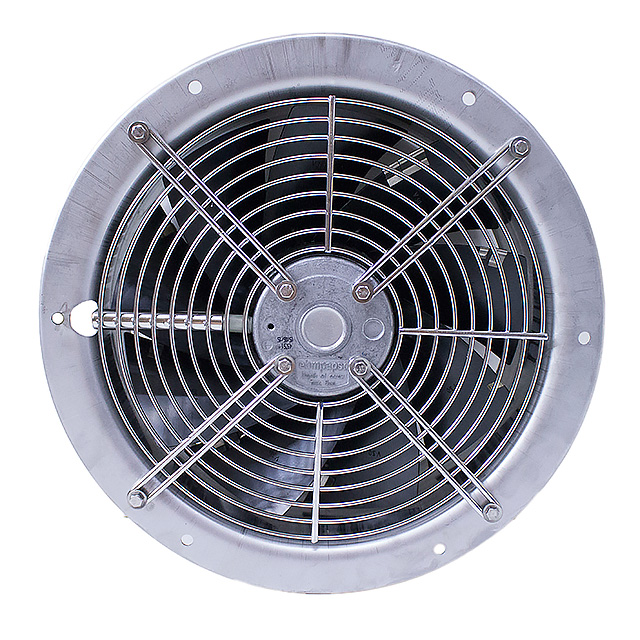

W2D250-HH14-09
AC Fans
- Manufacturer No:
- W2D250-HH14-09
- Manufacture:
- ebm-papst Inc.
- Datasheet:
- W2D250-HH14-09
- Description:
- FAN AXIAL
In Stock
1 pcs On sales
$361.2
Product Parameter
- Bearing Type
- Ball
- Power (Watts)
- 145W, 175W
- RPM
- 2800 RPM
- Voltage Range
- -
- Noise
- -
- Static Pressure
- 0.482 in H2O (120.0 Pa)
- Width
- 90.20mm
- Voltage - Rated
- 400/460VAC
- Series
- W2D250
- Material - Blade
- Steel
- Air Flow
- -
- Material - Frame
- Aluminum
- Fan Type
- Tubeaxial, 3 Phase
- Size / Dimension
- Square - 320mm L x 320mm H
- Features
- Dual Voltage
- Ingress Protection
- IP44
- Approvals
- CCC, CE, CSA, EAC, UL
- Current Rating (Amps)
- 0.230/0.240A
- Part Status
- Active
- Operating Temperature
- -13 ~ 140°F (-25 ~ 60°C)
- Termination
- Terminal Block
