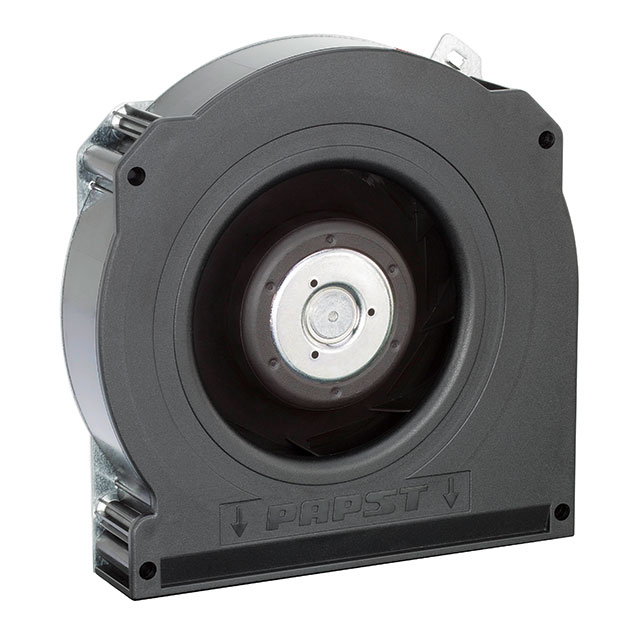

RLF100-11/18
DC Brushless Fans (BLDC)
- Manufacturer No:
- RLF100-11/18
- Manufacture:
- ebm-papst Inc.
- Datasheet:
- RLF100-11/18
- Description:
- FAN BLOWER
In Stock
24 pcs On sales
$90.03
Product Parameter
- Part Status
- Active
- Current Rating (Amps)
- -
- Termination
- 2 Wire Leads
- Operating Temperature
- -4 ~ 167°F (-20 ~ 75°C)
- Bearing Type
- Ball
- Power (Watts)
- 8.60W
- RPM
- 5100 RPM
- Voltage Range
- 36 ~ 60VDC
- Noise
- 6.4 dB(A)
- Static Pressure
- -
- Width
- 25.40mm
- Voltage - Rated
- 48VDC
- Series
- RLF100
- Lifetime @ Temp.
- 80000 Hrs @ 40°C
- Air Flow
- 37.7 CFM (1.06m³/min)
- Material - Blade
- Plastic, Fiberglass Reinforced
- Fan Type
- Blower, Centrifugal
- Material - Frame
- Plastic, Fiberglass Reinforced, Steel
- Features
- Locked Rotor Protection
- Size / Dimension
- Square/Rounded - 127mm L x 127mm H
- Approvals
- CE, CSA, UL, VDE
- Ingress Protection
- IP54 - Dust Protected, Water Resistant
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
RLF100-11/18 Relevant information
RLF100-11/12
FAN BLOWER 127X25.4MM 12VDC WIRE
RLF100-11/18
FAN BLOWER
RLF100-11/18/2HP
FAN BLOWER 127X25.4MM 48VDC WIRE

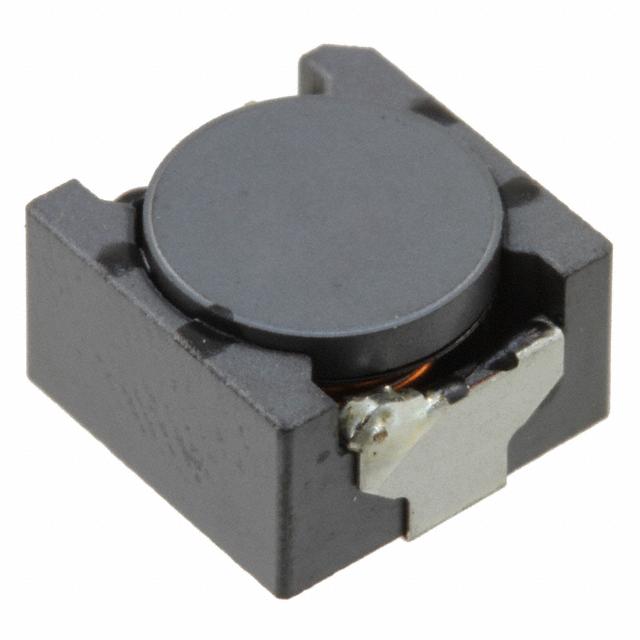

RLF10160T-100M2R8-D
