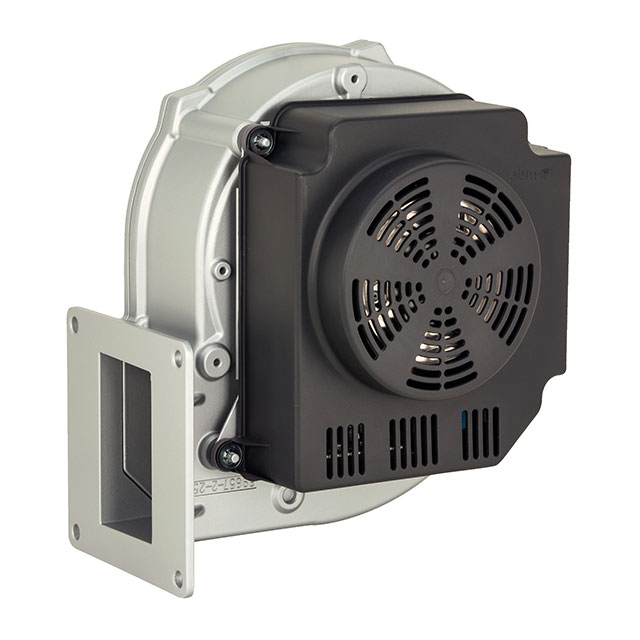

G1G108-AB17-02
DC Brushless Fans (BLDC)
- Manufacturer No:
- G1G108-AB17-02
- Manufacture:
- ebm-papst Inc.
- Datasheet:
- G1G108-AB17-02
- Description:
- MOTORIZED IMPELLER
In Stock
4 pcs On sales
$250.61
Product Parameter
- Width
- 115.0mm
- Voltage - Rated
- 24VDC
- Series
- G1G108
- Lifetime @ Temp.
- -
- Air Flow
- -
- Material - Blade
- Steel
- Fan Type
- Blower
- Material - Frame
- Aluminum
- Features
- PWM Control, Speed Sensor (Tach)
- Size / Dimension
- Rectangular/Rounded - 159mm L x 185mm H
- Approvals
- CSA, EAC, UL
- Ingress Protection
- IP22
- Part Status
- Active
- Current Rating (Amps)
- 2.00A
- Termination
- 4 Wire Leads with Splice Terminals
- Operating Temperature
- -13 ~ 140°F (-25 ~ 60°C)
- Bearing Type
- Ball
- Power (Watts)
- 42.00W
- RPM
- 3000 RPM
- Voltage Range
- 16 ~ 28VDC
- Noise
- -
- Static Pressure
- -
