AC6200NM
AC Fans
- Manufacturer No:
- AC6200NM
- Manufacture:
- ebm-papst Inc.
- Datasheet:
- AC6200NM
- Description:

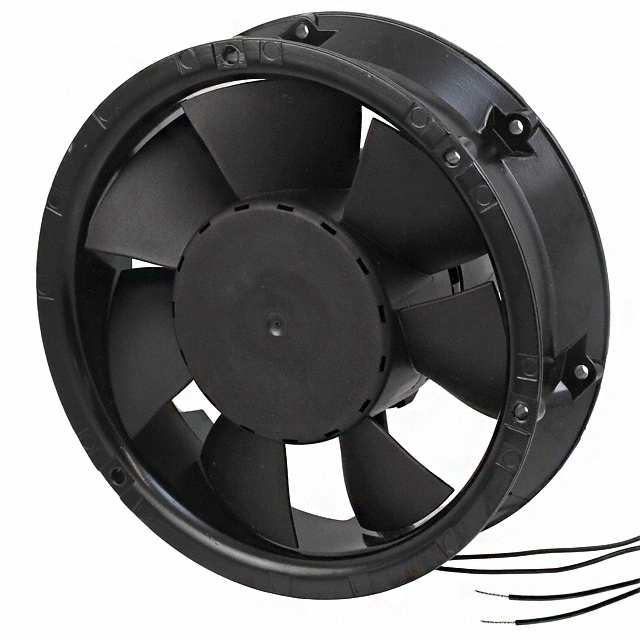

- FAN AXIAL 172X51MM 85/265VAC
In Stock
144 pcs On sales
$131.6
Product Parameter
- Noise
- 50.0 dB(A)
- Voltage Range
- 85 ~ 265VAC
- Width
- 51.00mm
- Static Pressure
- -
- Series
- Green Tech ACmaxx, AC6200N
- Voltage - Rated
- 115VAC
- Weight
- 2 lbs (907.2 g)
- Lifetime @ Temp.
- 80000 Hrs @ 40°C
- Air Flow
- 206.0 CFM (5.77m³/min)
- Material - Blade
- Polyamide (PA), Nylon, Fiberglass Reinforced
- Fan Type
- Tubeaxial
- Material - Frame
- Aluminum
- Features
- Electronic Commutation (EC), Locked Rotor Protection
- Size / Dimension
- Round - 172mm Dia
- Approvals
- CSA, UL, VDE
- Ingress Protection
- IP54 - Dust Protected, Water Resistant
- Part Status
- Active
- Current Rating (Amps)
- -
- Termination
- 2 Wire Leads
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
- Bearing Type
- Ball
- RPM
- 2850 RPM
- Power (Watts)
- 14.00W
