8212J/2H4P
DC Brushless Fans (BLDC)
- Manufacturer No:
- 8212J/2H4P
- Manufacture:
- ebm-papst Inc.
- Datasheet:
- 8212J/2H4P
- Description:
- FAN AXIAL 80X38MM 12VDC
In Stock
25 pcs On sales
$95.69
Product Parameter
- Width
- 38.00mm
- Voltage - Rated
- 12VDC
- Series
- 8200J, S-Force
- Lifetime @ Temp.
- 50000 Hrs @ 40°C
- Air Flow
- 130.7 CFM (3.66m³/min)
- Material - Blade
- Polyamide (PA), Nylon, Fiberglass Reinforced
- Fan Type
- Tubeaxial
- Material - Frame
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Features
- Speed Sensor (Tach)
- Size / Dimension
- Square - 80mm L x 80mm H
- Approvals
- -
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- -
- Termination
- 3 Wire Leads
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
- Bearing Type
- Ball
- Power (Watts)
- 39.00W
- RPM
- 14000 RPM
- Voltage Range
- 6 ~ 13.8VDC
- Noise
- 71.0 dB(A)
- Static Pressure
- -
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
8212J/2H4P Relevant information
8212

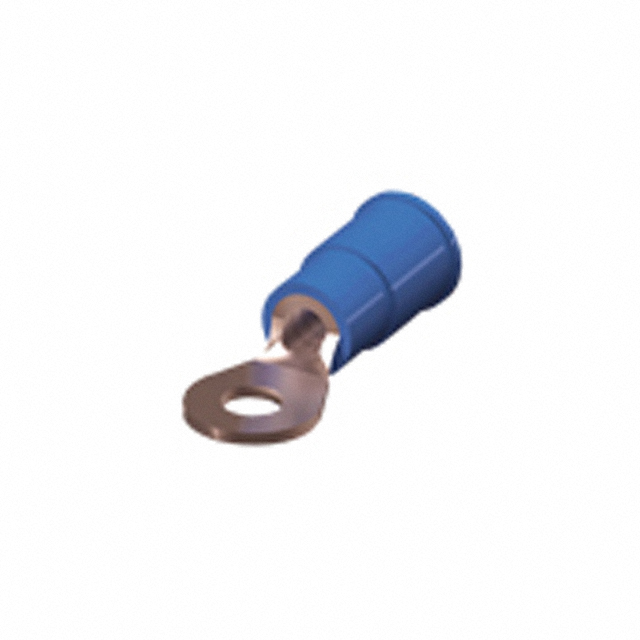

CONN RING CIRC 14-16AWG #6 CRIMP
