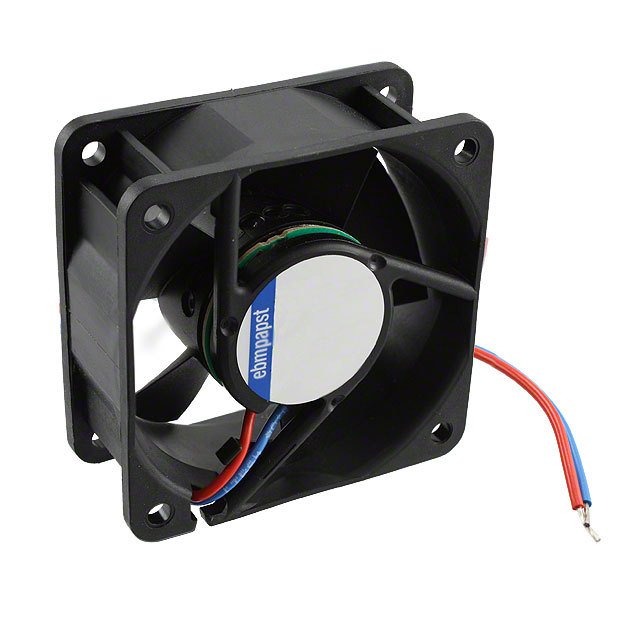

612NHU-181
DC Brushless Fans (BLDC)
- Manufacturer No:
- 612NHU-181
- Manufacture:
- ebm-papst Inc.
- Datasheet:
- 612NHU-181
- Description:
- FAN AXIAL 12VDC 60X25MM IP68
In Stock
2 pcs On sales
$62.56
Product Parameter
- Noise
- 37.0 dB(A)
- Voltage Range
- 8 ~ 15VDC
- Width
- 25.40mm
- Static Pressure
- -
- Series
- 600NU
- Voltage - Rated
- 12VDC
- Weight
- 0.146 lb (66.22 g)
- Lifetime @ Temp.
- -
- Air Flow
- 25.3 CFM (0.708m³/min)
- Material - Blade
- Polyamide (PA), Nylon, Fiberglass Reinforced
- Fan Type
- Tubeaxial
- Material - Frame
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Features
- -
- Size / Dimension
- Square - 60mm L x 60mm H
- Approvals
- UL
- Ingress Protection
- IP68 - Dust Tight, Waterproof
- Part Status
- Active
- Current Rating (Amps)
- -
- Termination
- 2 Wire Leads
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
- Bearing Type
- Ball
- RPM
- 5600 RPM
- Power (Watts)
- 1.80W
