4412F/39M
DC Brushless Fans (BLDC)
- Manufacturer No:
- 4412F/39M
- Manufacture:
- ebm-papst Inc.
- Datasheet:
- 4412F/39M
- Description:

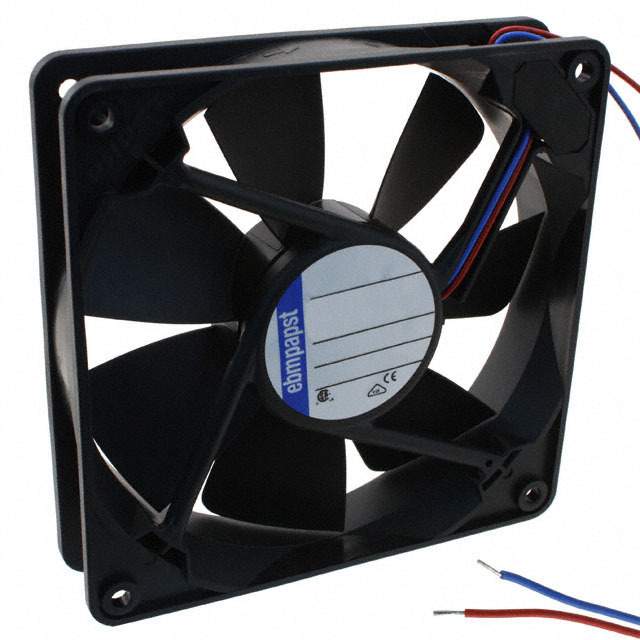

- FAN AXIAL 119X25.4MM 12VDC WIRE
In Stock
12 pcs On sales
$36.83
Product Parameter
- Features
- -
- Size / Dimension
- Square - 119mm L x 119mm H
- Approvals
- CE, CSA, EAC, UL, VDE
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- 0.270A
- Termination
- 3 Wire Leads
- Operating Temperature
- -4 ~ 167°F (-20 ~ 75°C)
- Bearing Type
- Ball
- RPM
- 2400 RPM
- Power (Watts)
- 3.20W
- Noise
- 38.0 dB(A)
- Voltage Range
- 7 ~ 12.6VDC
- Width
- 25.40mm
- Static Pressure
- 0.180 in H2O (44.8 Pa)
- Series
- 4400F
- Voltage - Rated
- 12VDC
- Weight
- -
- Lifetime @ Temp.
- Varies Based on Temperature
- Air Flow
- 100.0 CFM (2.80m³/min)
- Material - Blade
- Polyamide (PA), Nylon, Fiberglass Reinforced
- Fan Type
- Tubeaxial
- Material - Frame
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
