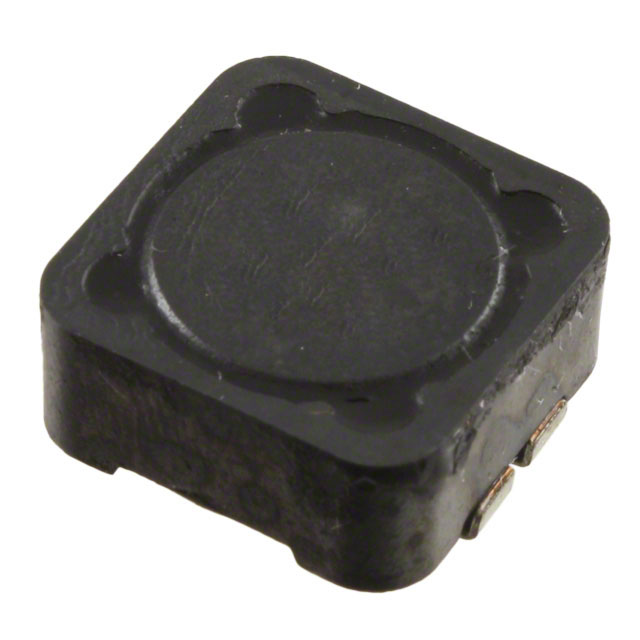

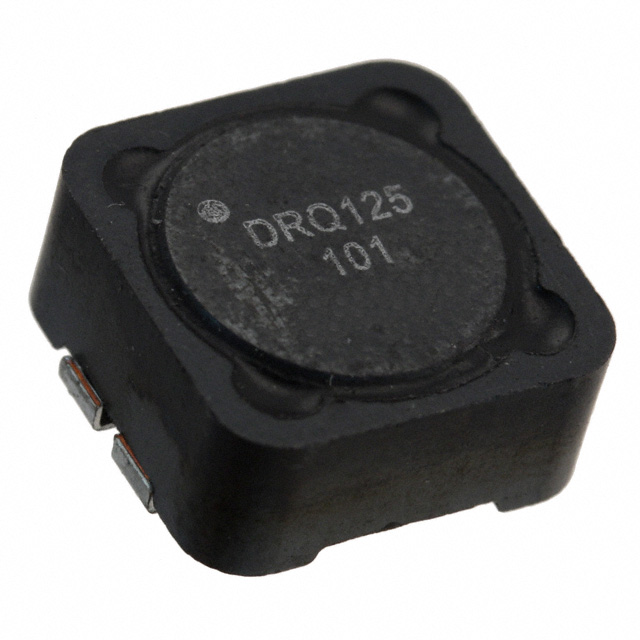

DRQ125-100-R
Arrays, Signal Transformers
- Manufacturer No:
- DRQ125-100-R
- Manufacture:
- Eaton-Electronics Division
- Package:
- Nonstandard
- Datasheet:
- DRQ125-100-R
- Description:
- INDUCT ARRAY 2 COIL 9.654UH SMD
In Stock
3544 pcs On sales
$0
Product Parameter
- Tolerance
- ±20%
- DC Resistance (DCR) - Parallel
- 18.9mOhm
- Part Status
- Active
- Inductance - Connected In Series
- 38.62µH
- Mounting Type
- Surface Mount
- Inductance - Connected In Parallel
- 9.654µH
- Package / Case
- Nonstandard
- Number of Coils
- 2

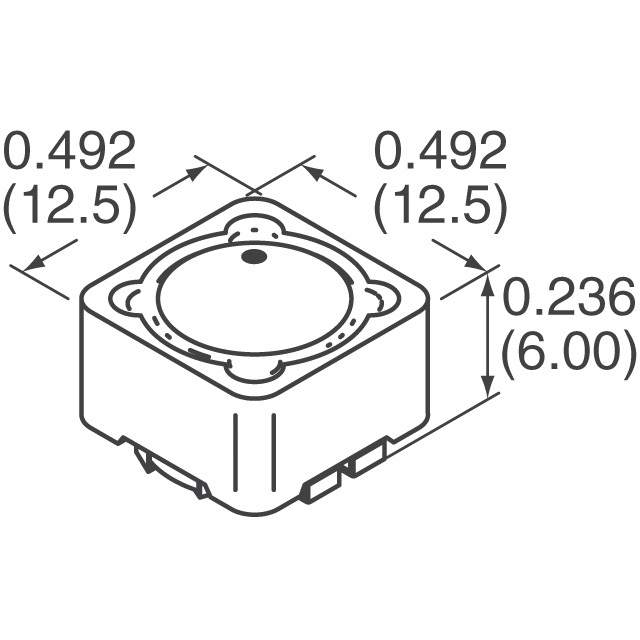

- Size / Dimension
- 0.492" L x 0.492" W (12.50mm x 12.50mm)
- Operating Temperature
- -40°C ~ 125°C
- Height
- 0.236" (6.00mm)
- Current Rating - Series
- 2.67A
- Series
- DRQ
- Current Rating - Parallel
- 5.35A
- Ratings
- -
- Current Saturation - Series
- 3.59A
- Packaging
- Digi-Reel®
- DC Resistance (DCR) - Series
- 75.7mOhm
- Shielding
- Shielded
- Current Saturation - Parallel
- 7.17A
