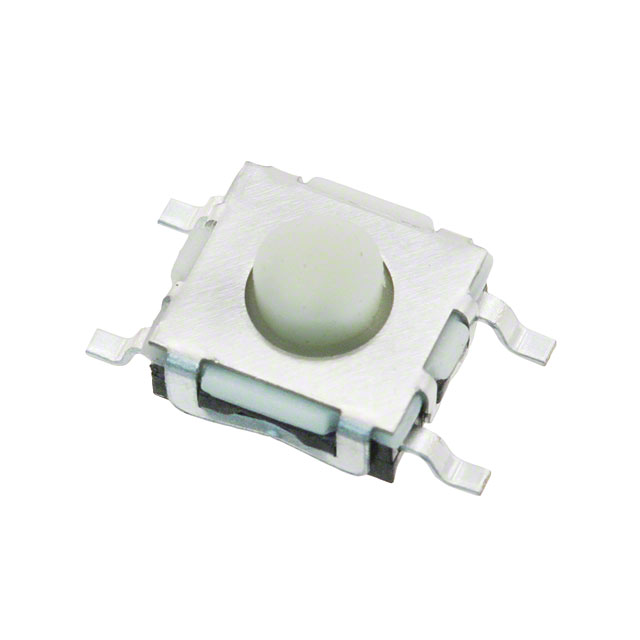

TL6700AF260QJ
Tactile Switches
- Manufacturer No:
- TL6700AF260QJ
- Manufacture:
- E-Switch
- Datasheet:
- TL6700AF260QJ
- Description:
- SWITCH TACTILE SPST-NO 0.05A 12V
In Stock
0 pcs On sales
$0
Product Parameter
- Series
- TL6700
- Switch Function
- Off-Mom
- Circuit
- SPST-NO
- Actuator Material
- Silicon Rubber
- Outline
- 6.90mm x 6.20mm
- Termination Style
- J Lead
- Features
- Process Sealed
- Ingress Protection
- -
- Packaging
- Digi-Reel®
- Actuator Orientation
- Top Actuated
- Part Status
- Discontinued at Digi-Key
- Operating Temperature
- -20°C ~ 70°C
- Illumination
- Non-Illuminated
- Contact Rating @ Voltage
- 0.05A @ 12VDC
- Actuator Type
- Standard
- Illumination Type, Color
- -
- Mounting Type
- Surface Mount
- Actuator Length, Right Angle
- -
- Switch Travel
- 0.35mm
- Illumination Voltage (Nominal)
- -
- Mechanical Life
- 100,000 Cycles
- Actuator Height off PCB, Vertical
- 3.40mm
- Operating Force
- 260gf
