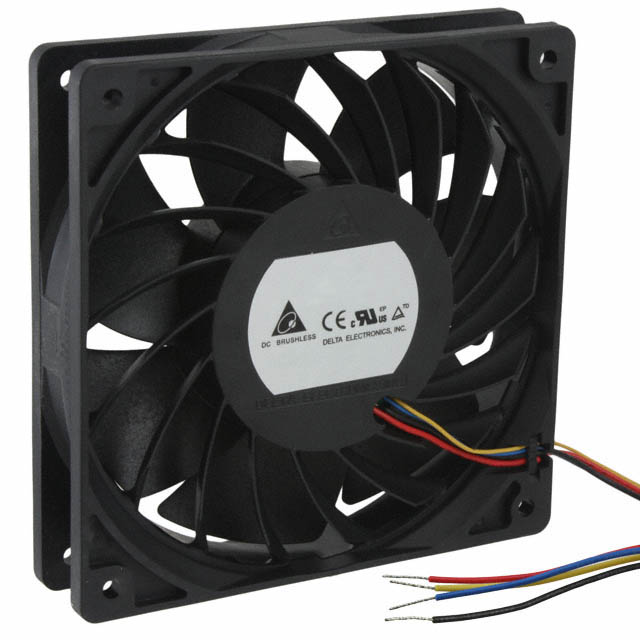

THB1212B-AXHF
DC Brushless Fans (BLDC)
- Manufacturer No:
- THB1212B-AXHF
- Manufacture:
- Delta Electronics
- Datasheet:
- THB1212B-AXHF
- Description:
- 120X120X25MM 12V DC FAN W/PWM CO
In Stock
121 pcs On sales
$43.84
Product Parameter
- Weight
- -
- Lifetime @ Temp.
- 70000 Hrs @ 40°C
- Air Flow
- 184.2 CFM (5.16m³/min)
- Material - Blade
- Plastic
- Fan Type
- Tubeaxial
- Material - Frame
- Plastic
- Features
- Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
- Size / Dimension
- Square - 120mm L x 120mm H
- Approvals
- CE, cURus, TUV
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- 1.60A
- Termination
- 4 Wire Leads
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
- Bearing Type
- Ball
- RPM
- 5300 RPM
- Power (Watts)
- 19.20W
- Noise
- 59.0 dB(A)
- Voltage Range
- 7 ~ 15VDC
- Width
- 25.40mm
- Static Pressure
- 0.899 in H2O (223.9 Pa)
- Series
- THB
- Voltage - Rated
- 12VDC
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
THB1212B-AXHF Relevant information
THB1212B-AXHF
120X120X25MM 12V DC FAN W/PWM CO
THB1224B
FAN AXIAL 120X25.4MM 24VDC WIRE
THB1224B-PM00
FAN AXIAL 120X25.4MM 24VDC WIRE

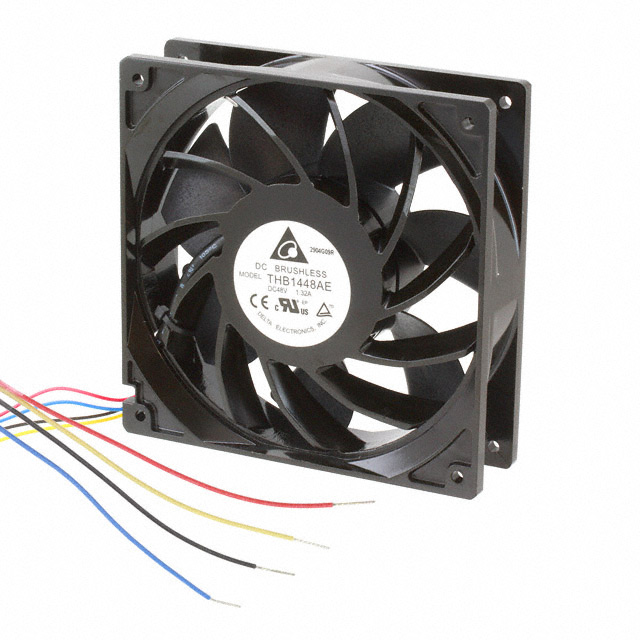

THB1448AE
