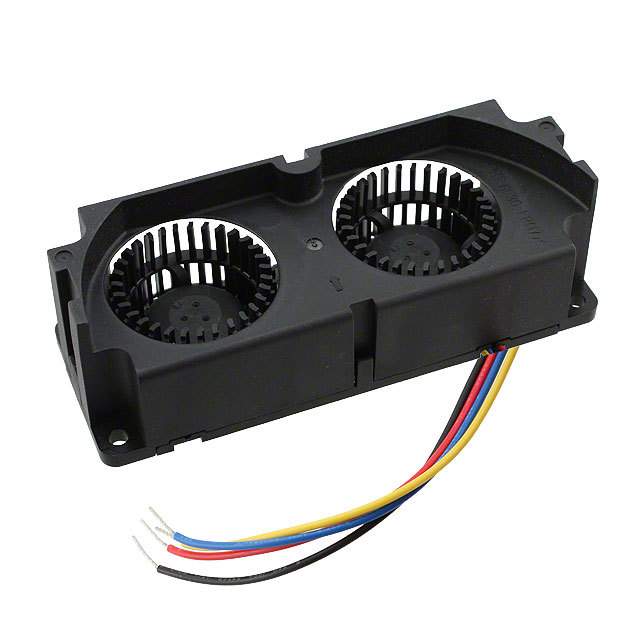

SFB0312HH-F00
DC Brushless Fans (BLDC)
- Manufacturer No:
- SFB0312HH-F00
- Manufacture:
- Delta Electronics
- Datasheet:
- SFB0312HH-F00
- Description:
- FAN BLOWER 180X38X45MM 12V WIRE
In Stock
0 pcs On sales
$0
Product Parameter
- Termination
- 3 Wire Leads
- Operating Temperature
- -
- Bearing Type
- Ball
- RPM
- 7000 RPM
- Power (Watts)
- 11.20W
- Noise
- 53.0 dB(A)
- Voltage Range
- 5.5 ~ 13.8VDC
- Width
- 38.00mm
- Static Pressure
- 0.669 in H2O (166.6 Pa)
- Series
- SFB
- Voltage - Rated
- 12VDC
- Weight
- 0.331 lb (150.14 g)
- Lifetime @ Temp.
- -
- Air Flow
- 34.2 CFM (0.958m³/min)
- Material - Blade
- Plastic
- Fan Type
- Blower
- Material - Frame
- Plastic
- Features
- Speed Sensor (Tach)
- Size / Dimension
- Rectangular - 180mm L x 45mm H
- Approvals
- CE, CSA, UL, VDE
- Ingress Protection
- -
- Part Status
- Obsolete
- Current Rating (Amps)
- 0.930A
