QFR1212EHE
DC Brushless Fans (BLDC)
- Manufacturer No:
- QFR1212EHE
- Manufacture:
- Delta Electronics
- Datasheet:
- QFR1212EHE
- Description:
- FAN AXIAL 120X120X38MM 12V WIRE
In Stock
246 pcs On sales
$32.9
Product Parameter
- Noise
- 59.0 dB(A)
- Voltage Range
- 8 ~ 13.2VDC
- Width
- 38.00mm
- Static Pressure
- 0.844 in H2O (210.2 Pa)
- Series
- QFR
- Voltage - Rated
- 12VDC
- Weight
- 0.728 lb (330.22 g)
- Lifetime @ Temp.
- -
- Air Flow
- 173.8 CFM (4.87m³/min)
- Material - Blade
- Plastic
- Fan Type
- Tubeaxial
- Material - Frame
- Plastic
- Features
- Locked Rotor Protection
- Size / Dimension
- Square - 120mm L x 120mm H
- Approvals
- CE, CSA, UL, VDE
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- 1A
- Termination
- 2 Wire Leads
- Operating Temperature
- -
- Bearing Type
- Ball
- RPM
- 5000 RPM
- Power (Watts)
- 12.00W
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
QFR1212EHE Relevant information
QFR1212EHE
FAN AXIAL 120X120X38MM 12V WIRE

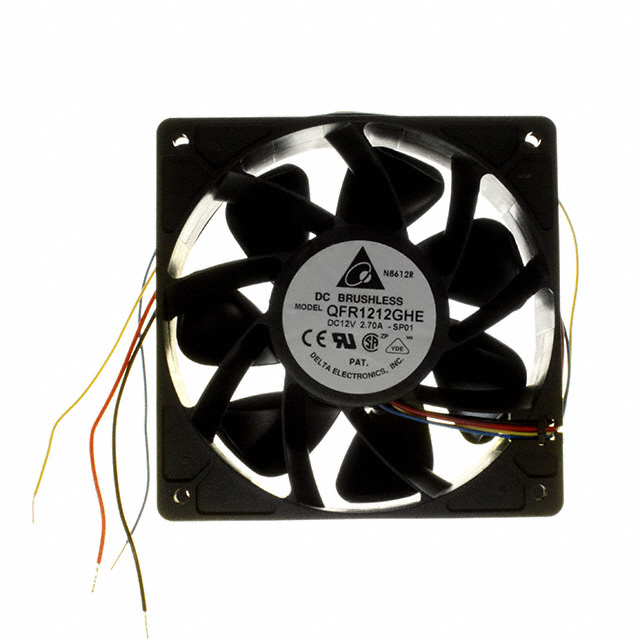

QFR1212GHE-SP01
FAN AXIAL 120X38MM 12VDC WIRE

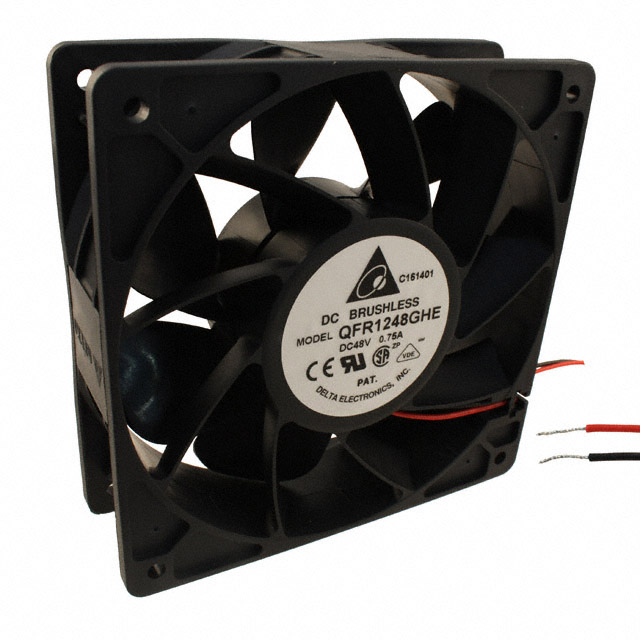

QFR1248GHE
