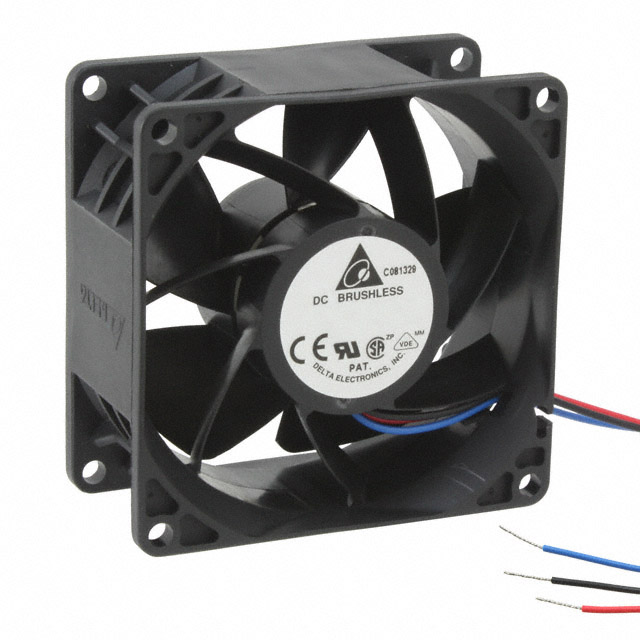

QFR0812SH-F00
DC Brushless Fans (BLDC)
- Manufacturer No:
- QFR0812SH-F00
- Manufacture:
- Delta Electronics
- Datasheet:
- QFR0812SH-F00
- Description:
- FAN AXIAL 80X25.4MM 12VDC WIRE
In Stock
660 pcs On sales
$15.51
Product Parameter
- Part Status
- Active
- Current Rating (Amps)
- 0.330A
- Termination
- 3 Wire Leads
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
- Bearing Type
- Ball
- RPM
- 4300 RPM
- Power (Watts)
- 3.96W
- Noise
- 41.2 dB(A)
- Voltage Range
- 5 ~ 13.2VDC
- Width
- 25.40mm
- Static Pressure
- 0.331 in H2O (82.4 Pa)
- Series
- QFR
- Voltage - Rated
- 12VDC
- Weight
- 0.253 lb (114.76 g)
- Lifetime @ Temp.
- 70000 Hrs @ 40°C
- Air Flow
- 54.6 CFM (1.53m³/min)
- Material - Blade
- Plastic
- Fan Type
- Tubeaxial
- Material - Frame
- Plastic
- Features
- Locked Rotor Protection, Speed Sensor (Tach)
- Size / Dimension
- Square - 80mm L x 80mm H
- Approvals
- CE, UR, VDE
- Ingress Protection
- -
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
QFR0812SH-F00 Relevant information

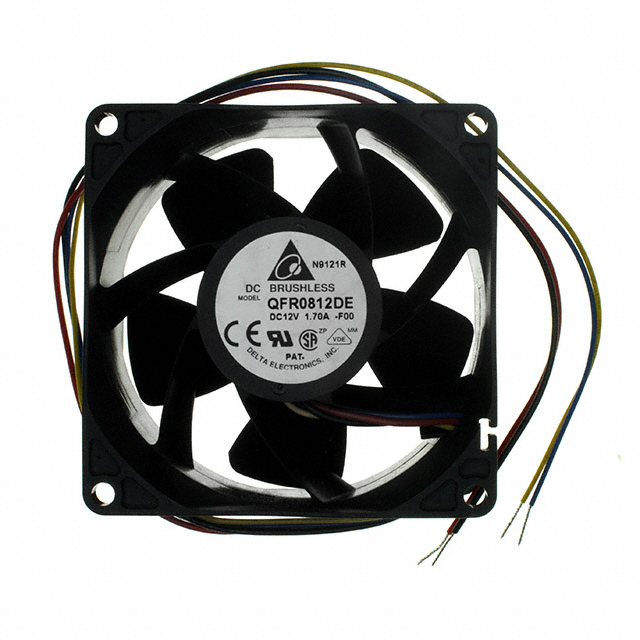

QFR0812DE-F00
