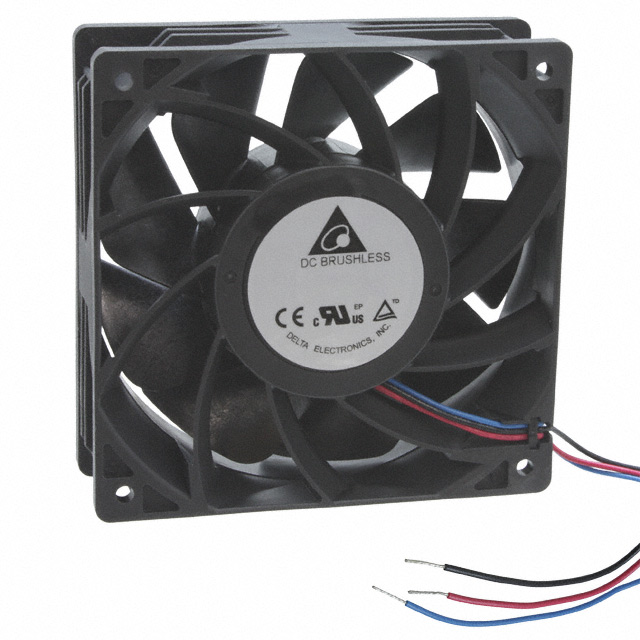

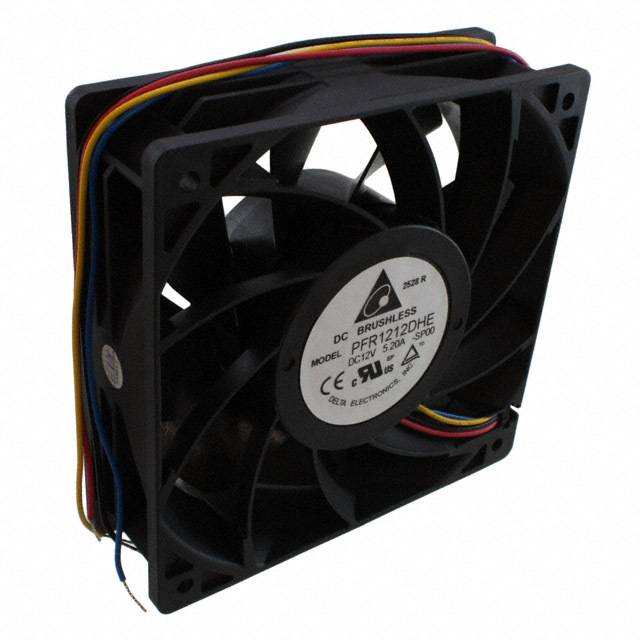

PFR1212DHE-SP00
DC Brushless Fans (BLDC)
- Manufacturer No:
- PFR1212DHE-SP00
- Manufacture:
- Delta Electronics
- Datasheet:
- PFR1212DHE-SP00
- Description:
- FAN AXIAL 120X38MM 12VDC WIRE
In Stock
360 pcs On sales
$42.33
Product Parameter
- Weight
- 0.904 lb (410.05 g)
- Lifetime @ Temp.
- 70000 Hrs @ 40°C
- Air Flow
- 254.3 CFM (7.12m³/min)
- Material - Blade
- Plastic
- Fan Type
- Tubeaxial
- Material - Frame
- Plastic
- Features
- PWM Control, Speed Sensor (Tach)
- Size / Dimension
- Square - 120mm L x 120mm H
- Approvals
- CE, TUV, UL
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- 3.7A
- Termination
- 4 Wire Leads
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
- Bearing Type
- Ball
- RPM
- 7400 RPM
- Power (Watts)
- 44.40W
- Noise
- 68.5 dB(A)
- Voltage Range
- 8 ~ 13.2VDC
- Width
- 38.00mm
- Static Pressure
- 1.438 in H2O (358.2 Pa)
- Series
- PFR
- Voltage - Rated
- 12VDC
