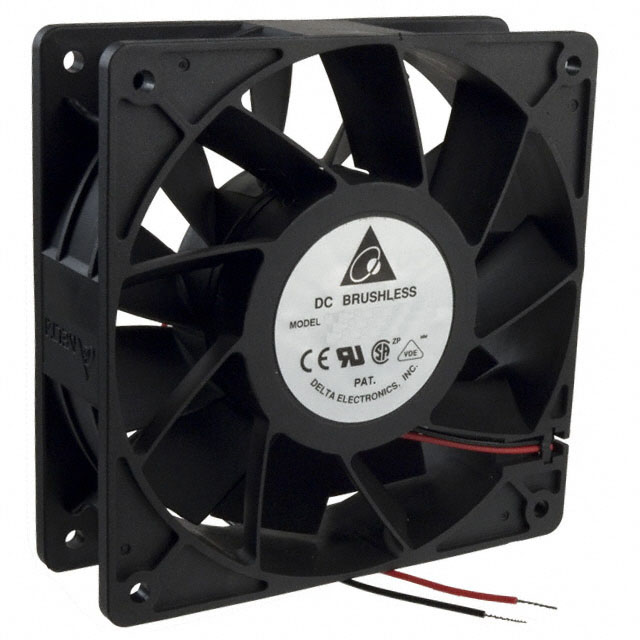

PFB1248UHE-TP38
DC Brushless Fans (BLDC)
- Manufacturer No:
- PFB1248UHE-TP38
- Manufacture:
- Delta Electronics
- Datasheet:
- PFB1248UHE-TP38
- Description:
- FAN AXIAL 120X38MM 48VDC WIRE
In Stock
0 pcs On sales
$0
Product Parameter
- Noise
- 65.0 dB(A)
- Voltage Range
- 38 ~ 60VDC
- Width
- 38.00mm
- Static Pressure
- 1.262 in H2O (314.4 Pa)
- Series
- PFB
- Voltage - Rated
- 48VDC
- Weight
- 0.794 lb (360.15 g)
- Lifetime @ Temp.
- 40000 Hrs @ 60°C
- Air Flow
- 268.3 CFM (7.51m³/min)
- Material - Blade
- Plastic
- Fan Type
- Tubeaxial
- Material - Frame
- Plastic
- Features
- Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
- Size / Dimension
- Square - 120mm L x 120mm H
- Approvals
- CE, CSA, UL, VDE
- Ingress Protection
- -
- Part Status
- Obsolete
- Current Rating (Amps)
- 1A
- Termination
- 4 Wire Leads
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
- Bearing Type
- Ball
- RPM
- 6000 RPM
- Power (Watts)
- 48.00W
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
PFB1248UHE-TP38 Relevant information

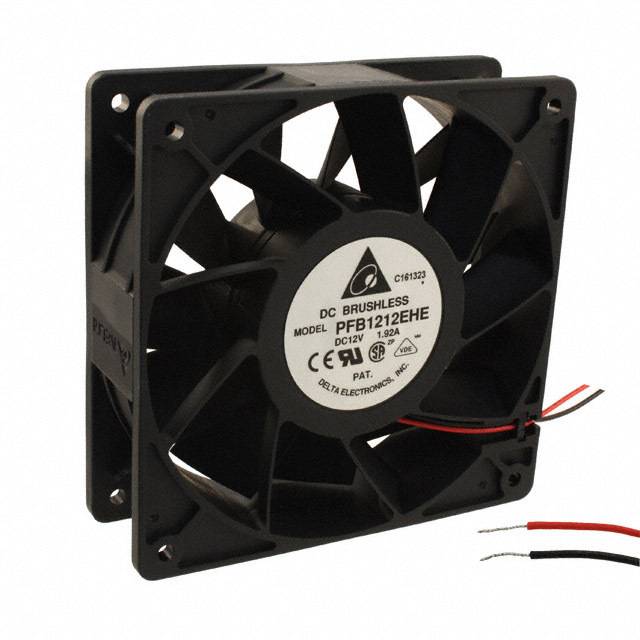

PFB1212EHE
FAN AXIAL 120X38MM 12VDC WIRE
PFB1212GHE
FAN AXIAL 120X38MM 12VDC WIRE
PFB1248UHE-TP38
FAN AXIAL 120X38MM 48VDC WIRE

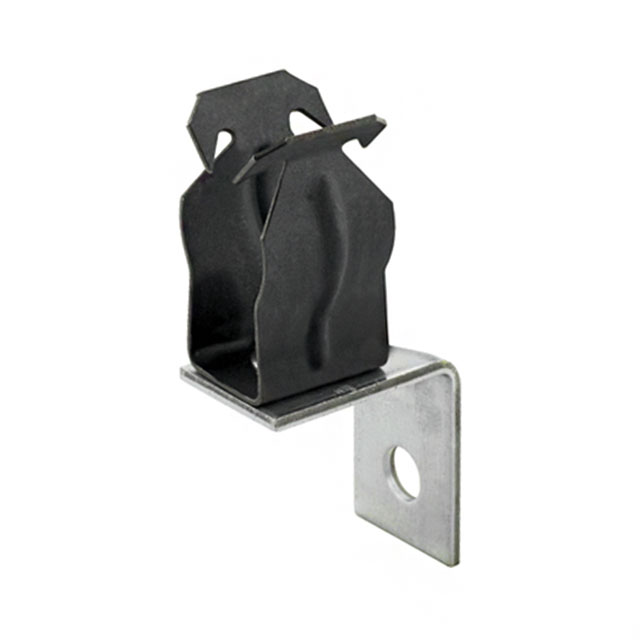

PFB12P
