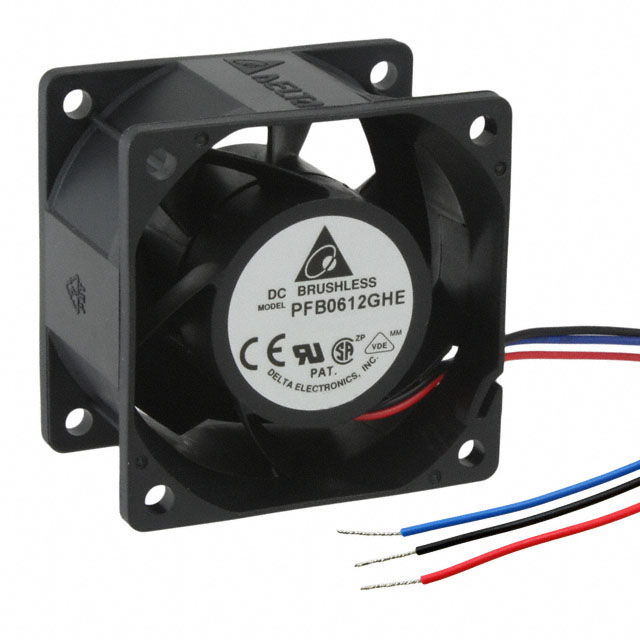

PFB0612GHE-T500
DC Brushless Fans (BLDC)
- Manufacturer No:
- PFB0612GHE-T500
- Manufacture:
- Delta Electronics
- Datasheet:
- PFB0612GHE-T500
- Description:
- FAN AXIAL 60X38MM 12VDC WIRE
In Stock
337 pcs On sales
$23.26
Product Parameter
- Approvals
- CE, CSA, UL, VDE
- Ingress Protection
- IP55 - Dust Protected, Water Resistant
- Part Status
- Active
- Current Rating (Amps)
- 0.850A
- Termination
- 2 Wire Leads
- Operating Temperature
- 14 ~ 140°F (-10 ~ 60°C)
- Bearing Type
- Ball
- RPM
- 10000 RPM
- Power (Watts)
- 10.20W
- Noise
- 57.5 dB(A)
- Voltage Range
- 7 ~ 13.2VDC
- Width
- 38.00mm
- Static Pressure
- 1.444 in H2O (359.7 Pa)
- Series
- PFB
- Voltage - Rated
- 12VDC
- Weight
- 0.287 lb (130.18 g)
- Lifetime @ Temp.
- 50000 Hrs @ 40°C
- Air Flow
- 55.6 CFM (1.56m³/min)
- Material - Blade
- Plastic
- Fan Type
- Tubeaxial
- Material - Frame
- Plastic
- Features
- Locked Rotor Protection
- Size / Dimension
- Square - 60mm L x 60mm H
