KSB0405HBF0D
DC Brushless Fans (BLDC)
- Manufacturer No:
- KSB0405HBF0D
- Manufacture:
- Delta Electronics
- Datasheet:
- KSB0405HBF0D
- Description:
- 40X8.5MM 5V DC BLOWER FRAMELESS
In Stock
548 pcs On sales
$7.03
Product Parameter
- Series
- KSB
- Voltage - Rated
- 5VDC
- Weight
- 0.022 lb (9.98 g)
- Lifetime @ Temp.
- 30000 Hrs @ 50°C
- Air Flow
- 1.2 CFM (0.034m³/min)
- Material - Blade
- Plastic
- Fan Type
- Motorized Impellers
- Material - Frame
- Steel
- Features
- Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
- Size / Dimension
- Round - 42mm Dia
- Approvals
- CE, cURus, VDE
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- 0.160A
- Termination
- 4 Wire Leads
- Operating Temperature
- 32 ~ 158°F (0 ~ 70°C)
- Bearing Type
- Sleeve
- RPM
- 3150 RPM
- Power (Watts)
- 800mW
- Noise
- 31.0 dB(A)
- Voltage Range
- 3 ~ 5.5VDC
- Width
- 8.50mm
- Static Pressure
- 0.008 in H2O (2.0 Pa)
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
KSB0405HBF0D Relevant information
KSB0405HBF0D
40X8.5MM 5V DC BLOWER FRAMELESS

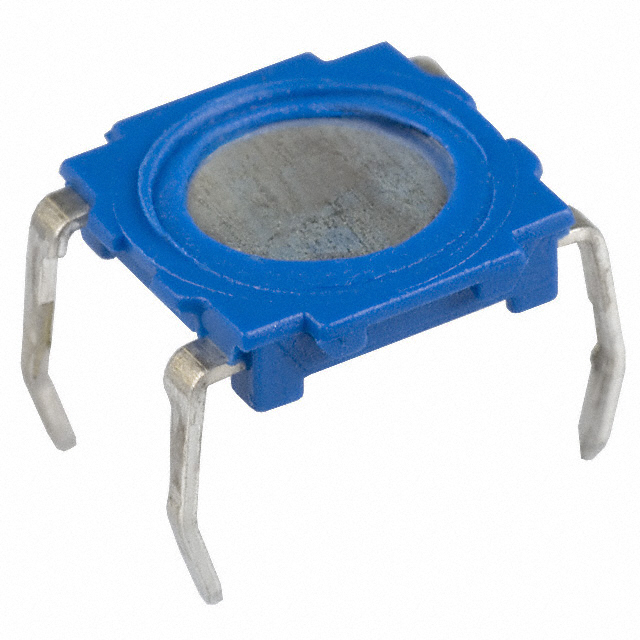

KSB0M110 LFT
