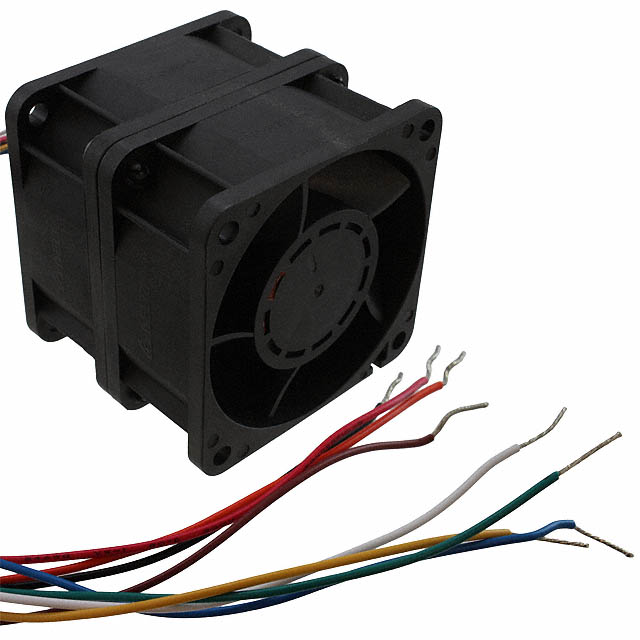

GFC0412DS-CMA5
DC Brushless Fans (BLDC)
- Manufacturer No:
- GFC0412DS-CMA5
- Manufacture:
- Delta Electronics
- Datasheet:
- GFC0412DS-CMA5
- Description:
- FAN AXIAL DUAL 40X56MM 12VDC
In Stock
0 pcs On sales
$19.9
Product Parameter
- Noise
- 64.0 dB(A)
- Voltage Range
- 10.8 ~ 12.6VDC
- Width
- 56.00mm
- Static Pressure
- 2.703 in H2O (673.3 Pa)
- Series
- GFC
- Voltage - Rated
- 12VDC
- Weight
- 0.176 lb (79.83 g)
- Lifetime @ Temp.
- 30000 Hrs @ 55°C
- Air Flow
- 25.3 CFM (0.708m³/min)
- Material - Blade
- Plastic
- Fan Type
- Tubeaxial (Dual)
- Material - Frame
- Plastic
- Features
- PWM Control, Speed Sensor (Tach)
- Size / Dimension
- Square - 40mm L x 40mm H
- Approvals
- CE, cURus, TUV
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- 0.850A
- Termination
- 4 Wire Leads per Fan
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
- Bearing Type
- Ball
- RPM
- 17200 Front, 15700 Rear
- Power (Watts)
- 10.20W
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
GFC0412DS-CMA5 Relevant information
GFC0412DS-CMA5
FAN AXIAL DUAL 40X56MM 12VDC

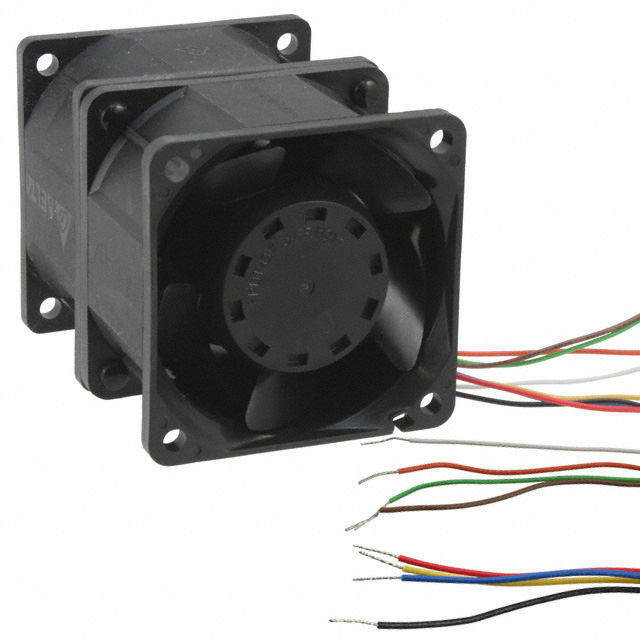

GFC0612DS-AQ14
FAN AXIAL DUAL 60X56MM 12VDC
GFC0612DW-F00
FAN AXIAL DUAL 60X76MM 12VDC

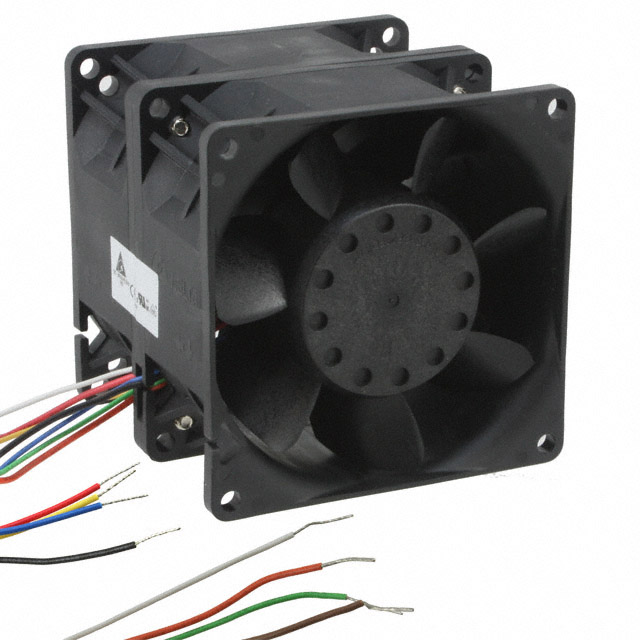

GFC0812DW-DV55
FAN AXIAL DUAL 80X80MM 12VDC

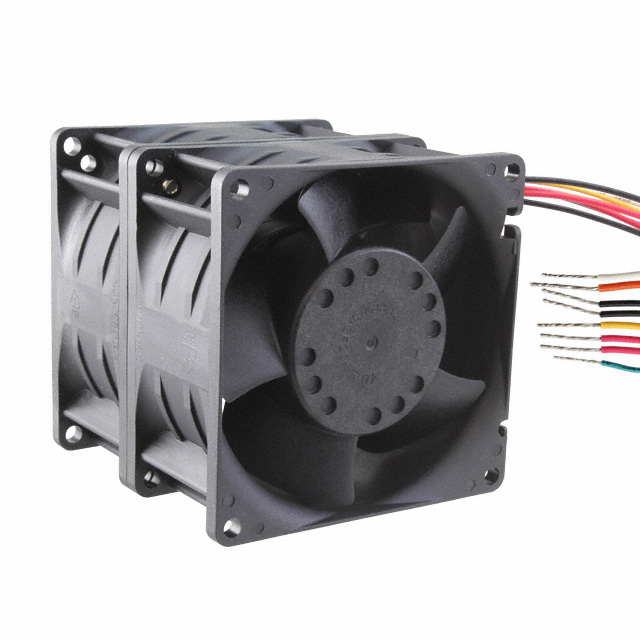

GFC0812DW-F00
