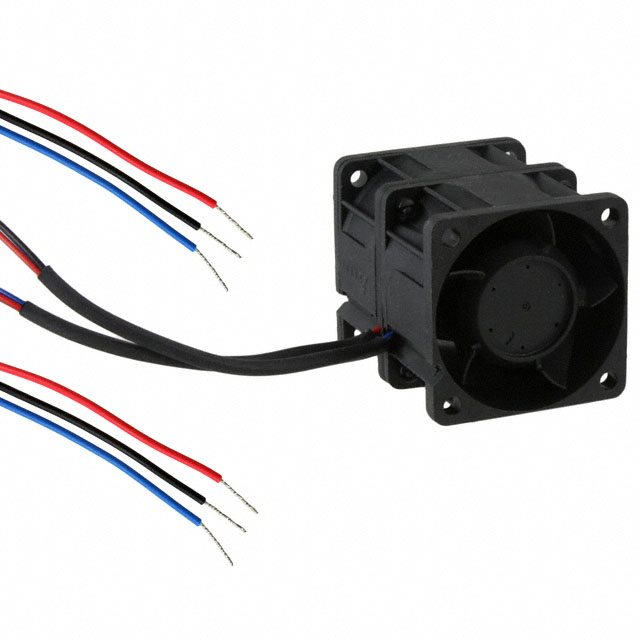

GFB0412HF
DC Brushless Fans (BLDC)
- Manufacturer No:
- GFB0412HF
- Manufacture:
- Delta Electronics
- Datasheet:
- GFB0412HF
- Description:
- FAN AXIAL DUAL 40X32MM 12VDC
In Stock
0 pcs On sales
$0
Product Parameter
- Air Flow
- 13.1 CFM (0.367m³/min)
- Material - Blade
- Plastic
- Fan Type
- Tubeaxial (Dual)
- Material - Frame
- Plastic
- Features
- -
- Size / Dimension
- Rectangular - 40mm L x 50mm H
- Approvals
- CE, CSA, UL, VDE
- Ingress Protection
- -
- Part Status
- Obsolete
- Current Rating (Amps)
- 0.140A
- Termination
- 2 Wire Leads per Fan
- Operating Temperature
- -
- Bearing Type
- Ball
- RPM
- 6500 Front, 6200 Rear
- Power (Watts)
- 1.68W
- Noise
- 41.0 dB(A)
- Voltage Range
- 7 ~ 13.2VDC
- Width
- 32.00mm
- Static Pressure
- 0.253 in H2O (63.0 Pa)
- Series
- GFB
- Voltage - Rated
- 12VDC
- Weight
- 0.099 lb (44.91 g)
- Lifetime @ Temp.
- -
