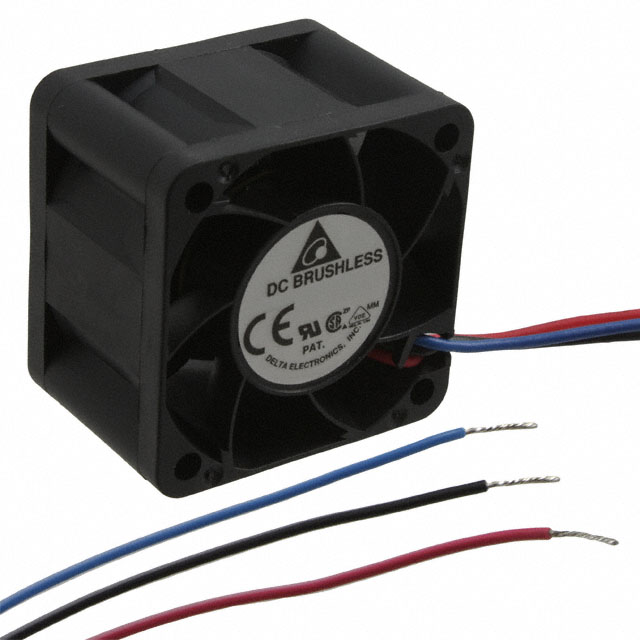

FFB0424VHN-B
DC Brushless Fans (BLDC)
- Manufacturer No:
- FFB0424VHN-B
- Manufacture:
- Delta Electronics
- Datasheet:
- FFB0424VHN-B
- Description:
- FAN AXIAL 40X28MM 24VDC WIRE
In Stock
7674 pcs On sales
$14.17
Product Parameter
- Fan Type
- Tubeaxial
- Material - Frame
- Plastic
- Features
- -
- Size / Dimension
- Square - 40mm L x 40mm H
- Approvals
- CE, CSA, UL, VDE
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- 0.100A
- Termination
- 2 Wire Leads
- Operating Temperature
- -
- Bearing Type
- Ball
- RPM
- 9500 RPM
- Power (Watts)
- 2.40W
- Noise
- 45.0 dB(A)
- Voltage Range
- 14 ~ 26.4VDC
- Width
- 28.00mm
- Static Pressure
- 0.509 in H2O (126.8 Pa)
- Series
- FFB
- Voltage - Rated
- 24VDC
- Weight
- 0.07 lb (31.75 g)
- Lifetime @ Temp.
- 70000 Hrs @ 40°C
- Air Flow
- 15.8 CFM (0.442m³/min)
- Material - Blade
- Plastic
