EUB0424HD
DC Brushless Fans (BLDC)
- Manufacturer No:
- EUB0424HD
- Manufacture:
- Delta Electronics
- Datasheet:
- EUB0424HD
- Description:

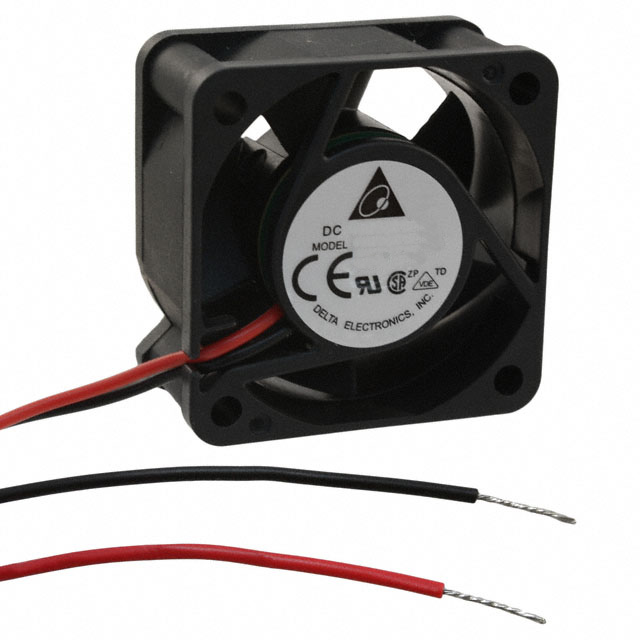

- FAN AXIAL 40X20MM 24VDC
In Stock
0 pcs On sales
$4.35
Product Parameter
- Series
- EUB
- Voltage - Rated
- 24VDC
- Weight
- 0.073 lb (33.11 g)
- Lifetime @ Temp.
- 50000 Hrs @ 40°C
- Air Flow
- 8.5 CFM (0.238m³/min)
- Material - Blade
- Plastic
- Fan Type
- Tubeaxial
- Material - Frame
- Plastic
- Features
- -
- Size / Dimension
- Square - 40mm L x 40mm H
- Approvals
- CE, CSA, UL, VDE
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- 0.060A
- Termination
- 2 Wire Leads
- Operating Temperature
- 14 ~ 140°F (-10 ~ 60°C)
- Bearing Type
- Superflo
- RPM
- 7600 RPM
- Power (Watts)
- 1.44W
- Noise
- 28.5 dB(A)
- Voltage Range
- 14 ~ 27.6VDC
- Width
- 20.00mm
- Static Pressure
- 0.303 in H2O (75.5 Pa)
