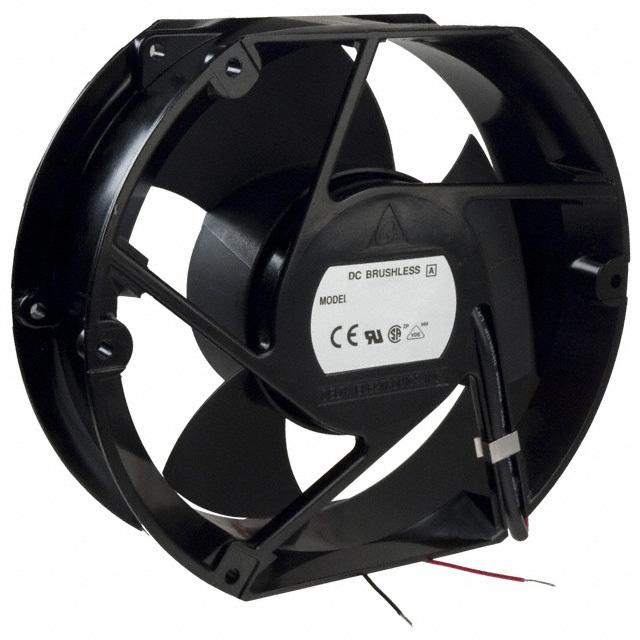

EFB1524HHG
DC Brushless Fans (BLDC)
- Manufacturer No:
- EFB1524HHG
- Manufacture:
- Delta Electronics
- Datasheet:
- EFB1524HHG
- Description:
- FAN AXIAL 172X50.8MM 24VDC WIRE
In Stock
20 pcs On sales
$70.08
Product Parameter
- Fan Type
- Tubeaxial
- Material - Frame
- Aluminum
- Features
- -
- Size / Dimension
- Rectangular/Rounded - 172mm L x 150mm H
- Approvals
- CE, CSA, UL, VDE
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- 0.770A
- Termination
- 2 Wire Leads
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
- Bearing Type
- Ball
- RPM
- 3700 RPM
- Power (Watts)
- 18.50W
- Noise
- 57.5 dB(A)
- Voltage Range
- 12 ~ 28VDC
- Width
- 50.80mm
- Static Pressure
- 0.800 in H2O (199.3 Pa)
- Series
- EFB
- Voltage - Rated
- 24VDC
- Weight
- 1.9 lbs (861.8 g)
- Lifetime @ Temp.
- 80000 Hrs @ 40°C
- Air Flow
- 279.7 CFM (7.83m³/min)
- Material - Blade
- Plastic
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
EFB1524HHG Relevant information
EFB1212VHE
FAN AXIAL 120X38MM 12VDC WIRE

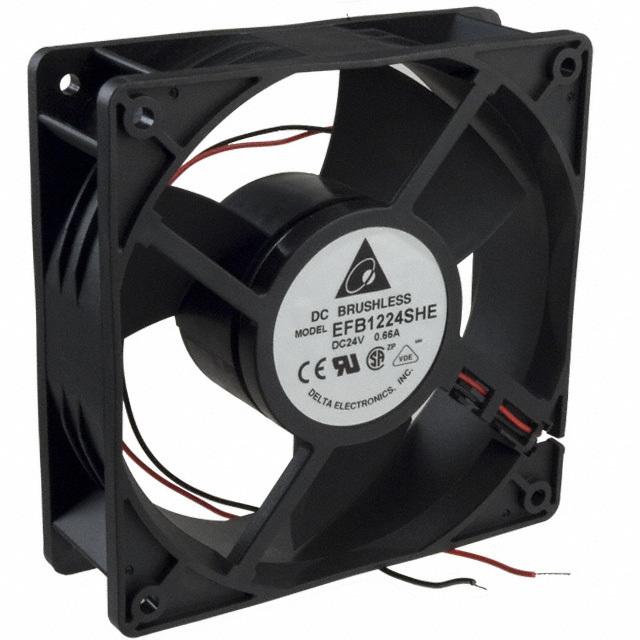

EFB1224SHE
FAN AXIAL 120X38MM 24VDC WIRE

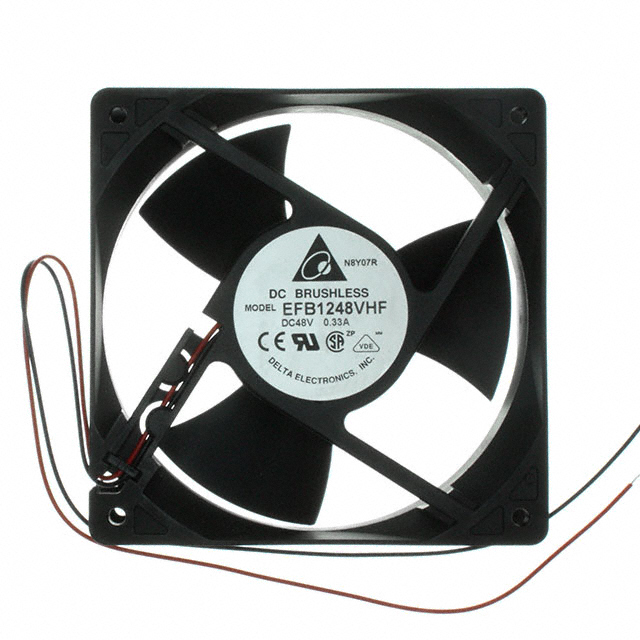

EFB1248VHF
