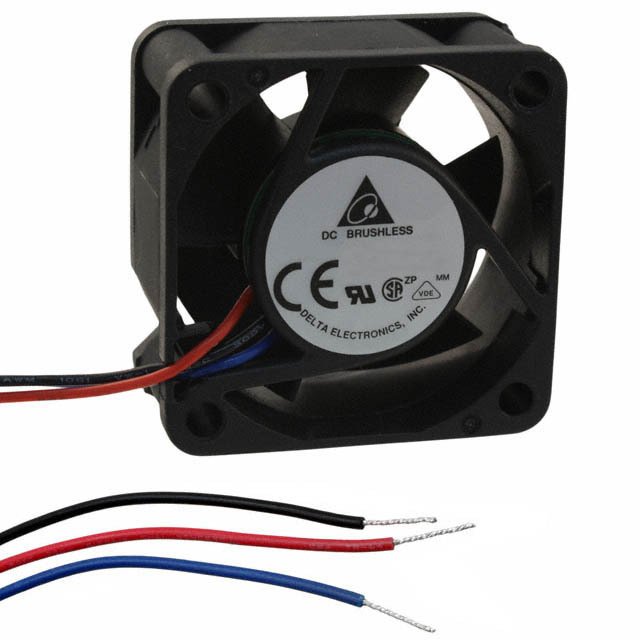

EFB0412HA
DC Brushless Fans (BLDC)
- Manufacturer No:
- EFB0412HA
- Manufacture:
- Delta Electronics
- Datasheet:
- EFB0412HA
- Description:
- FAN AXIAL 40X10MM 12VDC WIRE
In Stock
902 pcs On sales
$9.78
Product Parameter
- Weight
- 0.032 lb (14.51 g)
- Lifetime @ Temp.
- -
- Air Flow
- 6.9 CFM (0.193m³/min)
- Material - Blade
- Plastic
- Fan Type
- Tubeaxial
- Material - Frame
- Plastic
- Features
- -
- Size / Dimension
- Square - 40mm L x 40mm H
- Approvals
- CE, CSA, UL, VDE
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- 0.080A
- Termination
- 2 Wire Leads
- Operating Temperature
- -
- Bearing Type
- Ball
- RPM
- 6000 RPM
- Power (Watts)
- 960mW
- Noise
- 28.5 dB(A)
- Voltage Range
- 7 ~ 13.8VDC
- Width
- 10.00mm
- Static Pressure
- 0.129 in H2O (32.1 Pa)
- Series
- EFB
- Voltage - Rated
- 12VDC
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
EFB0412HA Relevant information

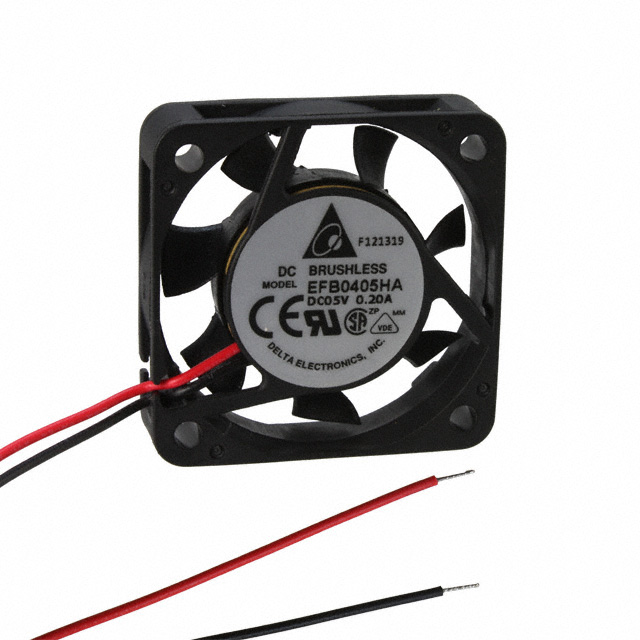

EFB0405HA
