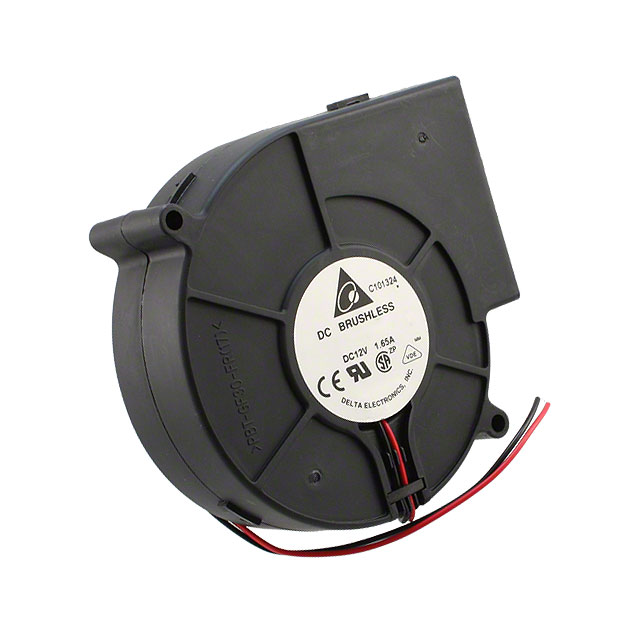

BFB1012EH-AF00
DC Brushless Fans (BLDC)
- Manufacturer No:
- BFB1012EH-AF00
- Manufacture:
- Delta Electronics
- Datasheet:
- BFB1012EH-AF00
- Description:
- FAN BLOWER 97.2X33MM 12VDC WIRE
In Stock
7 pcs On sales
$29.52
Product Parameter
- Series
- BFB
- Voltage - Rated
- 12VDC
- Weight
- 0.397 lb (180.08 g)
- Lifetime @ Temp.
- 50000 Hrs @ 40°C
- Air Flow
- 46.0 CFM (1.29m³/min)
- Material - Blade
- Plastic
- Fan Type
- Blower
- Material - Frame
- Plastic
- Features
- Locked Rotor Protection, Speed Sensor (Tach)
- Size / Dimension
- Rectangular/Rounded - 97.2mm L x 94.4mm H
- Approvals
- CE, CSA, UL, VDE
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- 2.45A
- Termination
- 3 Wire Leads
- Operating Temperature
- 14 ~ 140°F (-10 ~ 60°C)
- Bearing Type
- Ball
- RPM
- 5300 RPM
- Power (Watts)
- 29.40W
- Noise
- 64.0 dB(A)
- Voltage Range
- 7 ~ 12.6VDC
- Width
- 33.00mm
- Static Pressure
- 2.814 in H2O (701.0 Pa)
