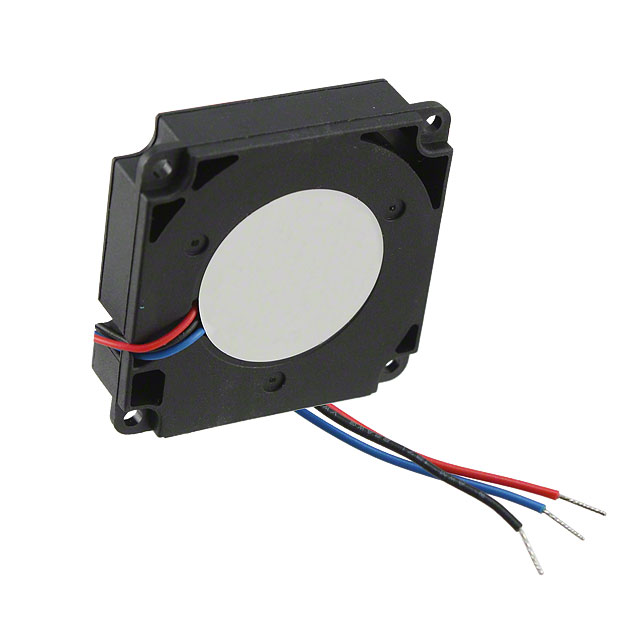

BFB03505HHA-A
DC Brushless Fans (BLDC)
- Manufacturer No:
- BFB03505HHA-A
- Manufacture:
- Delta Electronics
- Datasheet:
- BFB03505HHA-A
- Description:
- FAN BLOWER 35X10MM 5VDC WIRE
In Stock
5907 pcs On sales
$12.67
Product Parameter
- Bearing Type
- Ball
- RPM
- 8500 RPM
- Power (Watts)
- 750mW
- Noise
- 31.0 dB(A)
- Voltage Range
- 4 ~ 5.5VDC
- Width
- 10.00mm
- Static Pressure
- 0.443 in H2O (110.3 Pa)
- Series
- BFB
- Voltage - Rated
- 5VDC
- Weight
- 0.024 lb (10.89 g)
- Lifetime @ Temp.
- 30000 Hrs @ 40°C
- Air Flow
- 2.1 CFM (0.059m³/min)
- Material - Blade
- Plastic
- Fan Type
- Blower
- Material - Frame
- Plastic
- Features
- Locked Rotor Protection
- Size / Dimension
- Square - 35mm L x 35mm H
- Approvals
- CE, CSA, UL, VDE
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- 0.150A
- Termination
- 2 Wire Leads
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
