AFC0948DE-TP20
DC Brushless Fans (BLDC)
- Manufacturer No:
- AFC0948DE-TP20
- Manufacture:
- Delta Electronics
- Datasheet:
- AFC0948DE-TP20
- Description:
- FAN AXIAL 92X38MM 48VDC WIRE
In Stock
49 pcs On sales
$35.48
Product Parameter
- Fan Type
- Tubeaxial
- Material - Frame
- Plastic
- Features
- PWM Control, Speed Sensor (Tach)
- Size / Dimension
- Square - 92mm L x 92mm H
- Approvals
- CE, TUV, UL
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- 0.600A
- Termination
- 4 Wire Leads
- Operating Temperature
- -40 ~ 149°F (-40 ~ 65°C)
- Bearing Type
- Ball
- RPM
- 7500 RPM
- Power (Watts)
- 28.80W
- Noise
- 67.0 dB(A)
- Voltage Range
- 36 ~ 75VDC
- Width
- 38.00mm
- Static Pressure
- 1.528 in H2O (380.6 Pa)
- Series
- AFC
- Voltage - Rated
- 48VDC
- Weight
- 0.573 lb (259.91 g)
- Lifetime @ Temp.
- 70000 Hrs @ 40°C
- Air Flow
- 159.4 CFM (4.46m³/min)
- Material - Blade
- Plastic
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
AFC0948DE-TP20 Relevant information

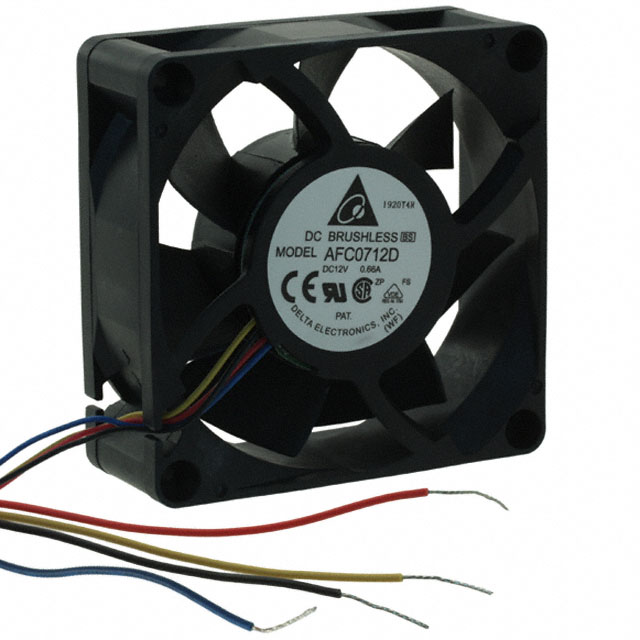

AFC0712D-9Z08
FAN AXIAL 70X25.4MM 12VDC WIRE

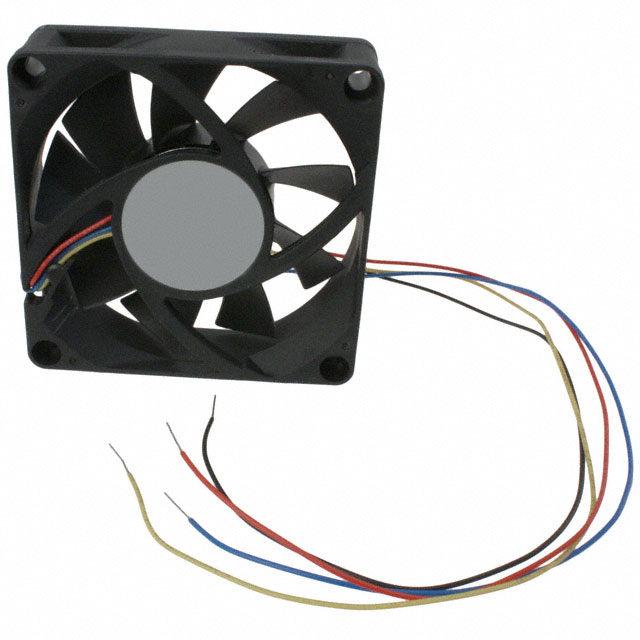

AFC0712DXEB
