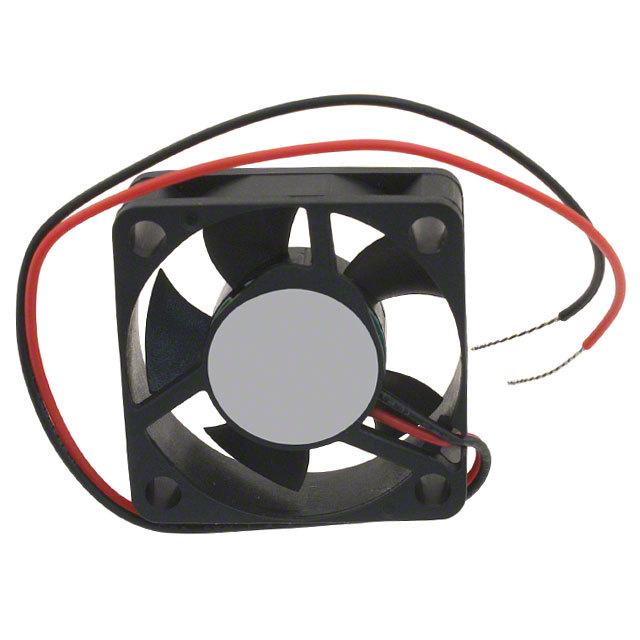

AFB0312HA-A
DC Brushless Fans (BLDC)
- Manufacturer No:
- AFB0312HA-A
- Manufacture:
- Delta Electronics
- Datasheet:
- AFB0312HA-A
- Description:
- FAN AXIAL 30X10MM 12VDC WIRE
In Stock
1318 pcs On sales
$12.08
Product Parameter
- Termination
- 2 Wire Leads
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
- Bearing Type
- Ball
- RPM
- 9000 RPM
- Power (Watts)
- 1.08W
- Noise
- 25.0 dB(A)
- Voltage Range
- 9.5 ~ 13.8VDC
- Width
- 10.00mm
- Static Pressure
- 0.100 in H2O (24.9 Pa)
- Series
- AFB
- Voltage - Rated
- 12VDC
- Weight
- 0.023 lb (10.43 g)
- Lifetime @ Temp.
- 30000 Hrs @ 40°C
- Air Flow
- 3.5 CFM (0.098m³/min)
- Material - Blade
- Plastic
- Fan Type
- Tubeaxial
- Material - Frame
- Plastic
- Features
- -
- Size / Dimension
- Square - 30mm L x 30mm H
- Approvals
- CE, CSA, UL, VDE
- Ingress Protection
- -
- Part Status
- Not For New Designs
- Current Rating (Amps)
- 0.090A
