CYBT-343026-01
RF Transceiver Modules
- Manufacturer No:
- CYBT-343026-01
- Manufacture:
- Cypress Semiconductor Corp
- Package:
- Module
- Datasheet:
- CYBT-343026-01
- Description:
- IC RF TXRX+MCU BLE 5.0 MESH 24SM
In Stock
648 pcs On sales
$0
Product Parameter
- Package / Case
- Module
- Series
- EZ-BT™ WICED®
- Power - Output
- 12dBm
- Protocol
- Bluetooth v4.2
- Voltage - Supply
- 2.3V ~ 3.6V
- Data Rate
- 6Mbps
- Serial Interfaces
- I²C, I²S, PCM, SPI, UART
- Frequency
- 2.402GHz ~ 2.48GHz
- RF Family/Standard
- Bluetooth
- Packaging
- Digi-Reel®
- Utilized IC / Part
- -
- Modulation
- 8DPSK, DQPSK, GFSK
- Current - Receiving
- 26.4mA
- Memory Size
- 512kB Flash
- Operating Temperature
- -30°C ~ 85°C (TA)
- Part Status
- Active
- Current - Transmitting
- 60.3mA
- Sensitivity
- -96.5dBm
- Antenna Type
- Integrated, Trace
- Mounting Type
- Surface Mount
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
CYBT-343026-01 Relevant information
CYBT-213043-EVAL
EVAL BLE BR/EDR CYBT-213043-02

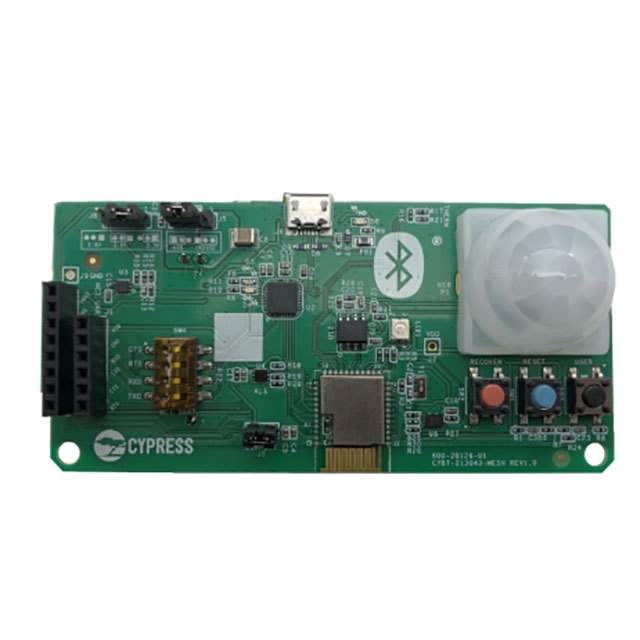

CYBT-213043-MESH
EVAL CYW213043 BLE MESH
CYBT-343026-01
IC RF TXRX+MCU BLE 5.0 MESH 24SM

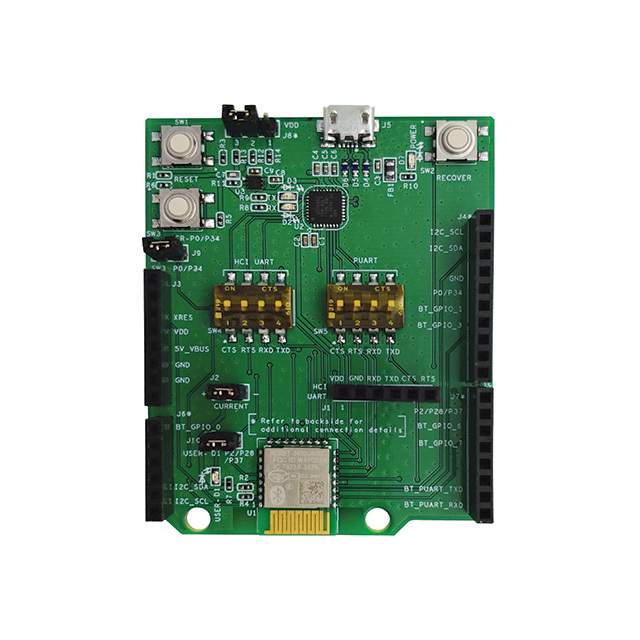

CYBT-343026-EVAL
EVAL BLUETOOTH WICED MODULE
CYBT-343151-02
IC RF TXRX+MCU BLE 5.0 ANT SIC

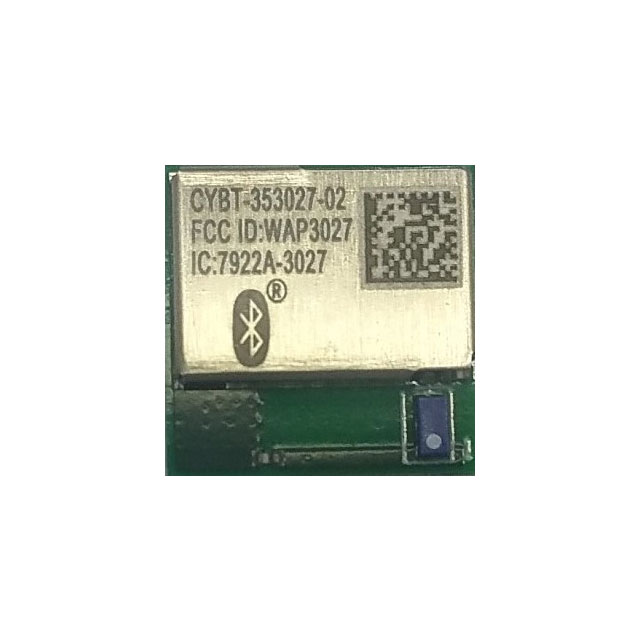

CYBT-353027-02
