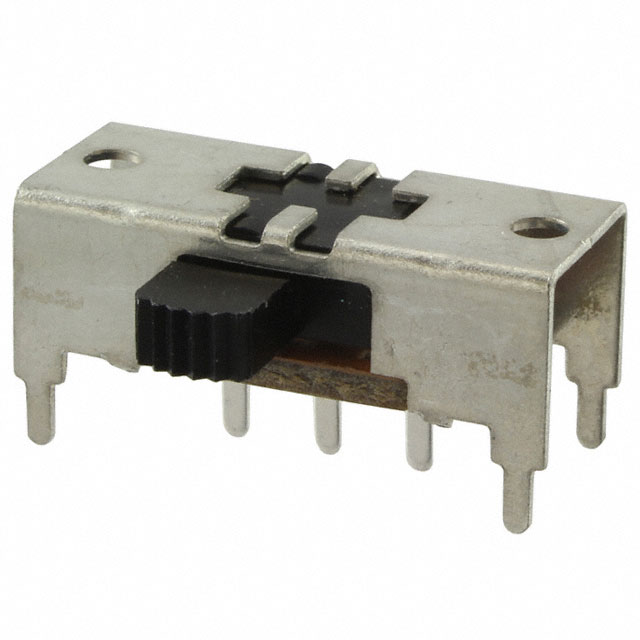

GPI-151-0002
Slide Switches
- Manufacturer No:
- GPI-151-0002
- Manufacture:
- CW Industries
- Datasheet:
- GPI-151-0002
- Description:
- SWITCH SLIDE SPDT 500MA 125V
In Stock
2094 pcs On sales
$1.15
Product Parameter
- Series
- GPI
- Mechanical Life
- 10,000 Cycles
- Circuit
- SPDT
- Operating Force
- -
- Features
- -
- Switch Function
- On-On
- Packaging
- Bulk
- Contact Material
- Copper
- Part Status
- Active
- Actuator Material
- Polyamide (PA66), Nylon 6/6
- Actuator Type
- Standard
- Termination Style
- PC Pin
- Mounting Type
- Through Hole, Right Angle
- Voltage Rating - AC
- 125V
- Switch Travel
- 3.30mm
- Voltage Rating - DC
- 125V
- Contact Finish
- Silver
- Current Rating (Amps)
- 500mA (AC/DC)
- Contact Timing
- Not Specified
- Operating Temperature
- -10°C ~ 104°C
- Actuator Length
- 8.33mm
- Electrical Life
- 6,000 Cycles
