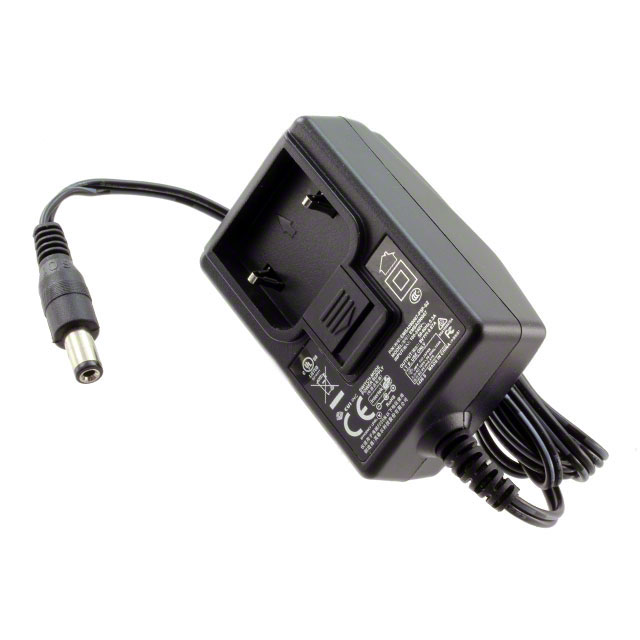

SMI6-12-V-P5
AC DC Desktop, Wall Adapters
- Manufacturer No:
- SMI6-12-V-P5
- Manufacture:
- CUI, Inc.
- Datasheet:
- SMI6-12-V-P5
- Description:
- AC/DC WALL MOUNT ADAPTER 12V 6W
In Stock
3608 pcs On sales
$13.99
Product Parameter
- Approvals
- CCC, CE, cULus, GS, PSE, RCM
- Size / Dimension
- 2.52" L x 1.59" W x 1.18" H (64.0mm x 40.5mm x 30.0mm)
- Efficiency
- Level VI, CoC Tier 2
- Voltage - Output
- 12V
- Input Type
- Multi-Blade (Included)
- Operating Temperature
- 0°C ~ 40°C
- Cord Length
- 60.2" (1.53m)
- Current - Output (Max)
- 500mA
- Part Status
- Active
- No Load Power Consumption
- 100mW (Max)
- Applications
- ITE (Commercial)
- Polarization
- Positive Center
- Power (Watts)
- 6W
- Input Connector
- Multi-Blade
- Form
- Wall Mount (Class II)
- Region Utilized
- International
- Series
- SMI6 (6W)
- Voltage - Input
- 90 ~ 264 VAC
- Weight
- 0.153 lb (69.4 g)
- Output Connector
- Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
