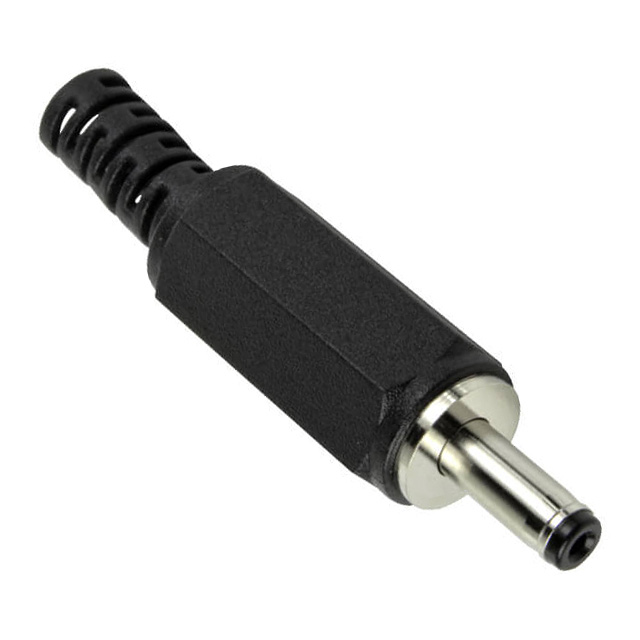

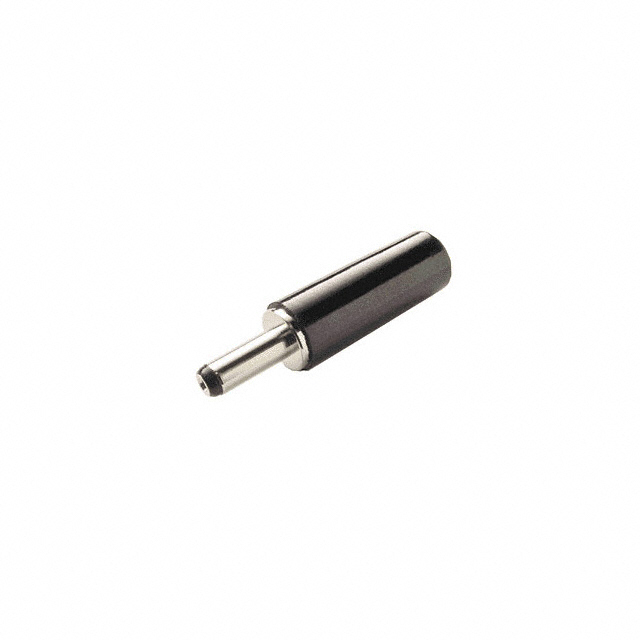

PP-002C
Barrel - Power Connectors
- Manufacturer No:
- PP-002C
- Manufacture:
- CUI, Inc.
- Datasheet:
- PP-002C
- Description:
- CONN PWR PLUG 1X3.5MM SOLDER
In Stock
0 pcs On sales
$0
Product Parameter
- Packaging
- -
- Insulation Color
- Black
- Shielding
- Unshielded
- Mounting Feature
- -
- Body Color
- Silver, Black
- Ingress Protection
- -
- Part Status
- Obsolete
- Internal Switch(s)
- Does Not Contain Switch
- Termination
- Solder Eyelet(s)
- Dielectric Material
- Phenolic
- Thread Size
- -
- Mating Length/Depth
- 0.374" (9.50mm)
- Body Material
- Brass
- Current Rating (Amps)
- 2.5A
- Mounting Type
- Free Hanging (In-Line)
- Operating Temperature
- 0°C ~ 40°C
- Gender
- Female
- Connector Type
- Plug
- Contact Material - Plating
- Nickel
- Series
- -
- Actual Diameter
- 0.039" (1.00mm ID), 0.138" (3.50mm OD)
- Material Flammability Rating
- -
- Features
- -
- Voltage - Rated
- 16VDC
- Number of Positions/Contacts
- 2 Conductors, 2 Contacts

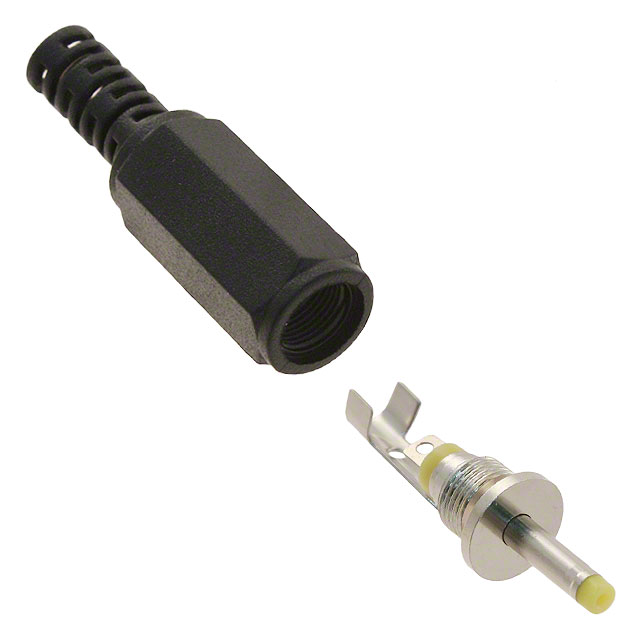

- Includes
- 2 pcs - 1 Connector, 1 Handle
- Contact Material
- Brass
- Industry Recognized Mating Diameter
- 1.00mm ID (0.039"), 3.50mm OD (0.138")
