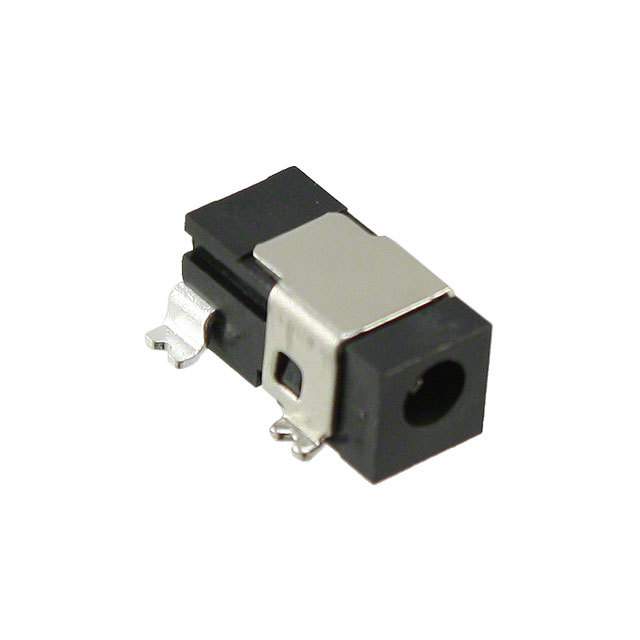

PJ1-021-SMT-TR
Barrel - Power Connectors
- Manufacturer No:
- PJ1-021-SMT-TR
- Manufacture:
- CUI, Inc.
- Datasheet:
- PJ1-021-SMT-TR
- Description:
- CONN PWR JACK 1.75X4.75MM SOLDER
In Stock
17315 pcs On sales
$0
Product Parameter
- Series
- -
- Actual Diameter
- 0.065" (1.65mm ID), 0.203" (5.15mm OD)
- Material Flammability Rating
- UL94 V-0
- Features
- Board Guide
- Voltage - Rated
- 24VDC
- Number of Positions/Contacts
- 2 Conductors, 3 Contacts
- Includes
- -
- Contact Material
- Brass, Copper Alloy
- Industry Recognized Mating Diameter
- 1.70mm ID (0.067"), 4.75mm OD (0.187") EIAJ-3
- Packaging
- Digi-Reel®
- Insulation Color
- -
- Shielding
- Unshielded
- Mounting Feature
- -
- Body Color
- Black
- Ingress Protection
- -
- Part Status
- Active
- Internal Switch(s)
- Single Switch, Normally Closed
- Termination
- Solder
- Dielectric Material
- Polyamide (PA6T), Nylon 6T
- Thread Size
- -
- Mating Length/Depth
- 0.315" (8.00mm)
- Body Material
- -
- Current Rating (Amps)
- 5A
- Mounting Type
- Surface Mount, Right Angle
- Operating Temperature
- -25°C ~ 85°C
- Gender
- Male
- Connector Type
- Jack
- Contact Material - Plating
- Silver
