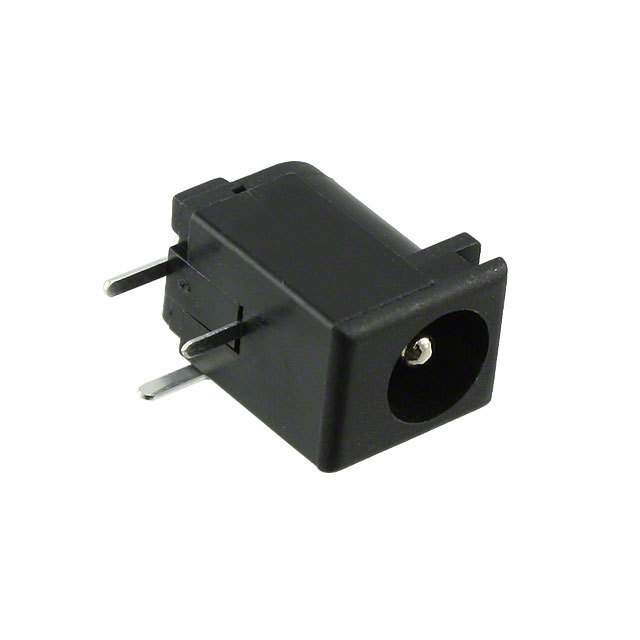

PJ-102A
Barrel - Power Connectors
- Manufacturer No:
- PJ-102A
- Manufacture:
- CUI, Inc.
- Datasheet:
- PJ-102A
- Description:
- CONN PWR JACK 2X5.5MM SOLDER
In Stock
102123 pcs On sales
$0.64
Product Parameter
- Shielding
- Unshielded
- Mounting Feature
- -
- Body Color
- Black
- Ingress Protection
- -
- Part Status
- Active
- Internal Switch(s)
- Single Switch, Normally Closed
- Termination
- Solder
- Dielectric Material
- Polybutylene Terephthalate (PBT)
- Thread Size
- -
- Mating Length/Depth
- 0.354" (9.00mm)
- Body Material
- -
- Current Rating (Amps)
- 2.5A
- Mounting Type
- Through Hole, Right Angle
- Operating Temperature
- -25°C ~ 85°C
- Gender
- Male
- Connector Type
- Jack
- Contact Material - Plating
- Tin
- Series
- -
- Actual Diameter
- 0.079" (2.00mm ID), 0.256" (6.50mm OD)
- Material Flammability Rating
- UL94 V-0
- Features
- -
- Voltage - Rated
- 24VDC
- Number of Positions/Contacts
- 2 Conductors, 3 Contacts
- Includes
- -
- Contact Material
- Brass, Copper Alloy
- Industry Recognized Mating Diameter
- 2.10mm ID (0.083"), 5.50mm OD (0.217")
- Packaging
- Tray
- Insulation Color
- -
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
PJ-102A Relevant information
PJ-102A
CONN PWR JACK 2X5.5MM SOLDER

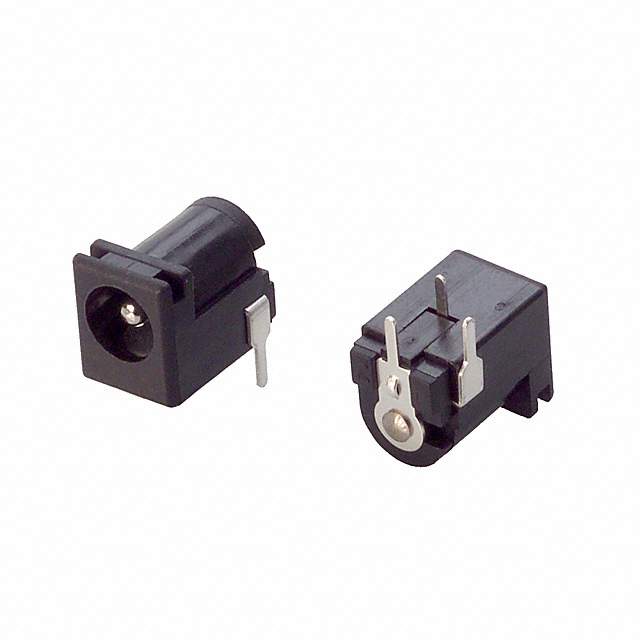

PJ-102AH
CONN PWR JACK 2X5.5MM SOLDER
PJ-102B
CONN PWR JACK 2.5X5.5MM SOLDER
PJ-102BH
CONN PWR JACK 2.5X5.5MM SOLDER

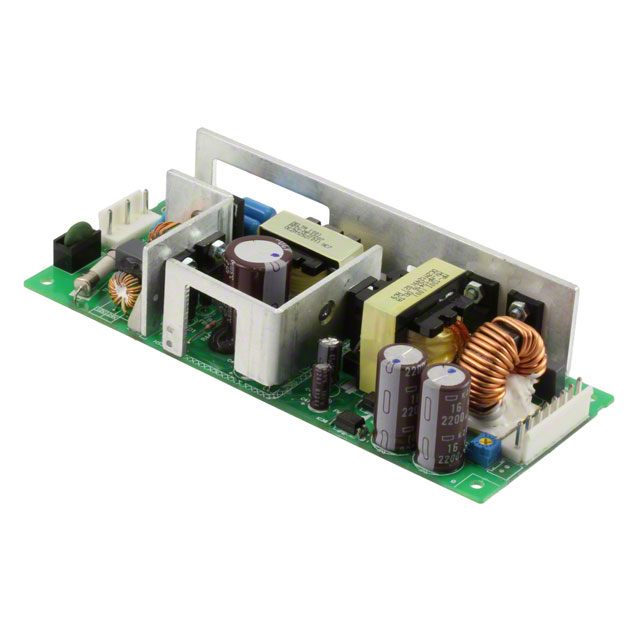

PJ-12V100WBNA
AC/DC CONVERTER 12V 100W

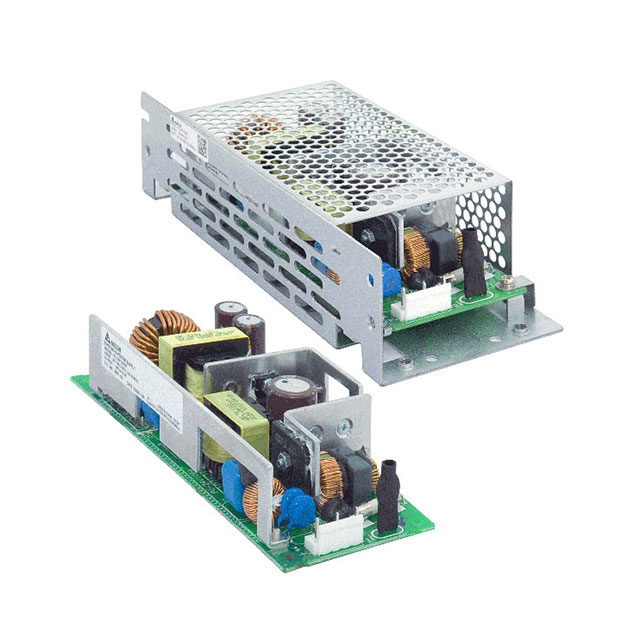

PJ-12V100WBRA
